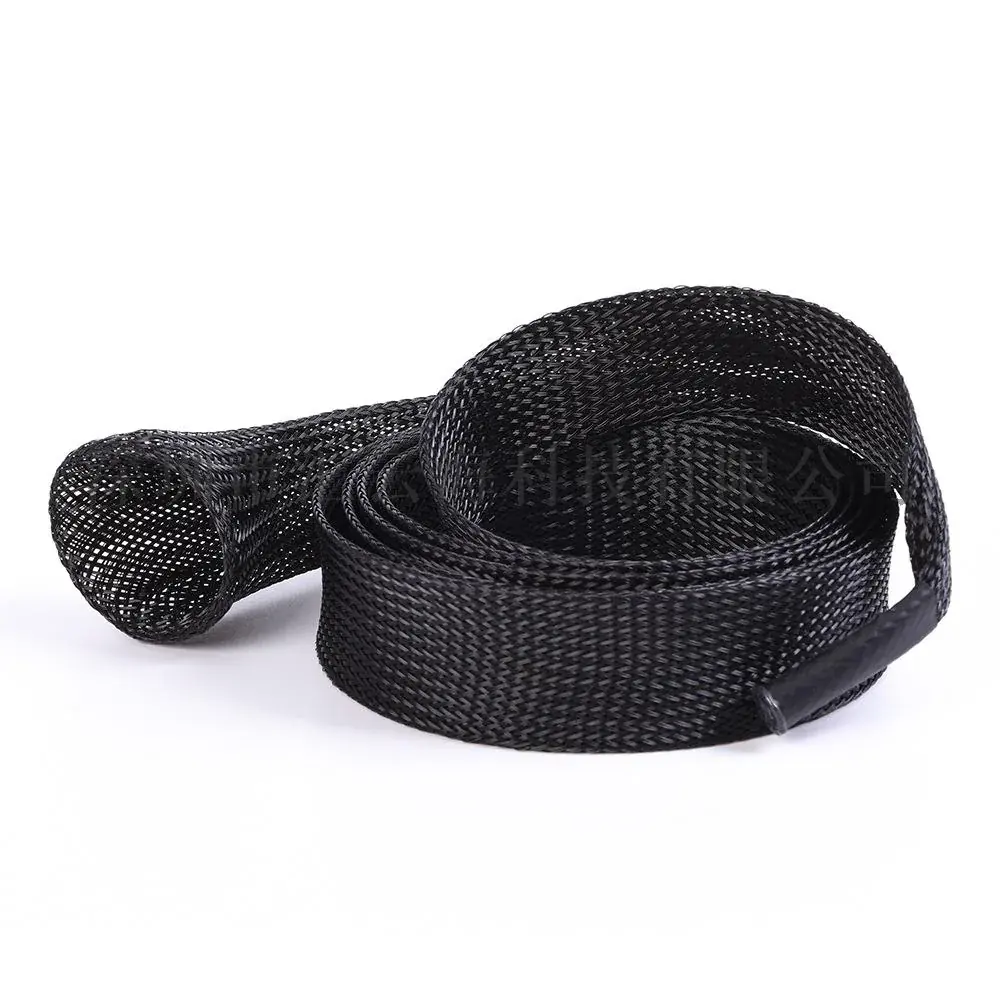

Weaving & braiding
Woven, UD and selected hybrid reinforcement formats.
Carbon FiberMaterials
For Composite Manufacturing
Zhejiang FRPHome New Material Co., Ltd. / 浙江福昊新材料有限公司Digital Catalog 2026
02
From reinforcement fiber to finished composite profiles, FRP HOME helps industrial buyers specify, source and customize carbon fiber materials.
Material platform
A connected range for composite production.
Fabrics, prepregs, plates, tubes, yarn, short fiber and process accessories are organized around practical B2B specification and export supply.

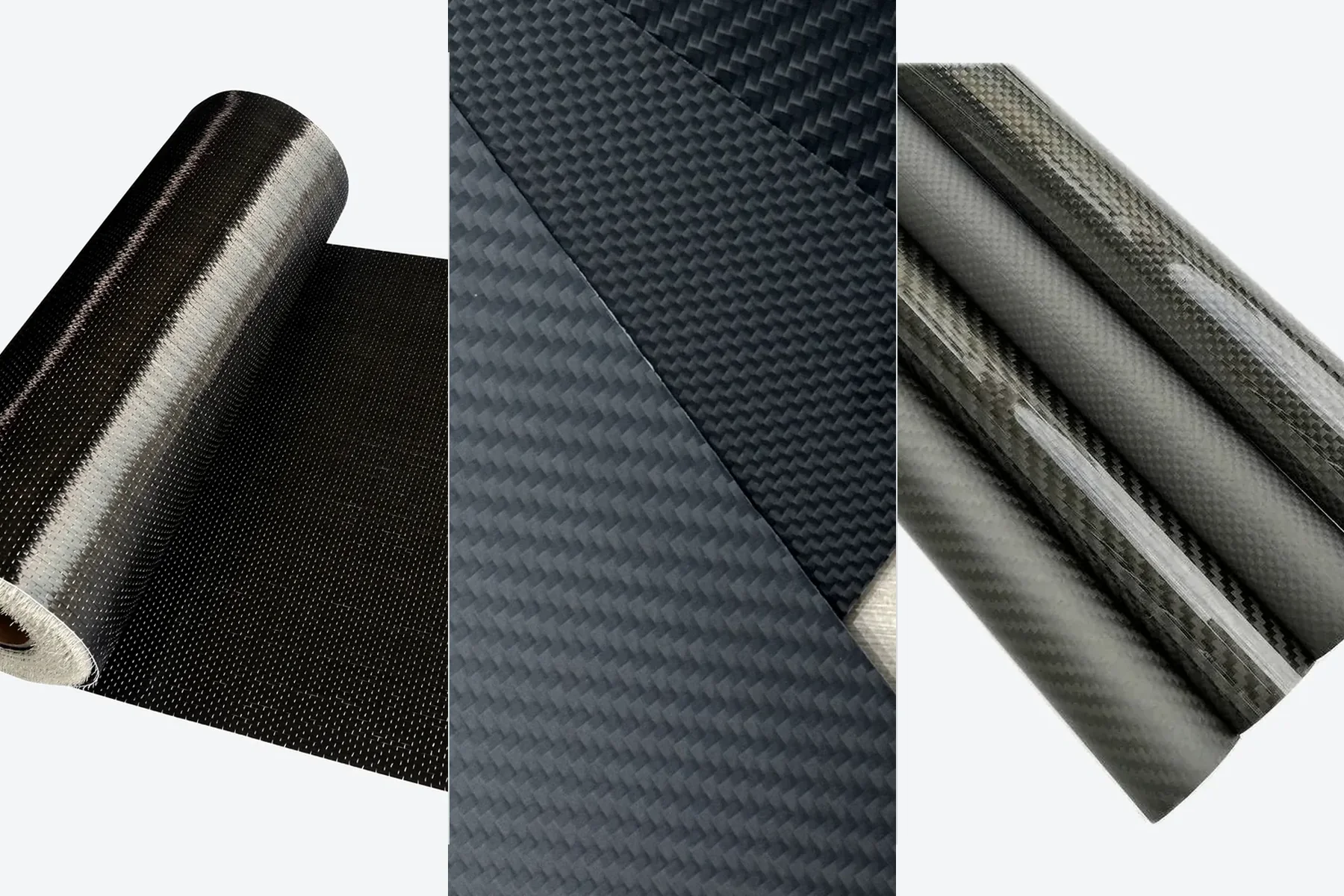

FRP HOME carbon fiber material product range01Fabrics
02Prepregs
03Plates
04Tubes
05Fibers
06Accessories
03
Company / 01
Company Profile
Composite material supply from Haining, Zhejiang, China.
Zhejiang FRPHome New Material Co., Ltd. supplies carbon fiber reinforcement materials and composite products for industrial buyers, distributors and OEM manufacturers.
浙江福昊新材料有限公司 · FRP HOME 福昊
The product range covers woven and unidirectional carbon fabrics, multiaxial NCF, prepreg, plates, tubes, yarn and roving, chopped fiber, aramid/hybrid fabrics, process accessories and drawing-based composite products.
Our commercial process focuses on specification confirmation, realistic technical communication, sample approval, export packing and repeat supply.
LocationHaining, Zhejiang, China
Business modelInternational B2B material supply
PositioningOne-stop composite material partner
Carbon fiber fabric production equipmentPublication note
Equipment count and annual capacity stated in the 2023 catalog remain subject to company confirmation before final release.
04
Company / 02
Manufacturing Capability
Production and converting capabilities arranged around product format and customer specification.
Multilayer materials
Stitched orientation structures and laminate build-up by project.
Pultrusion
Continuous carbon plates, tubes and profiles with strong axial alignment.
Prepreg handling
Resin-system, storage and shipment requirements confirmed by specification.
Finishing & CNC
Sheet cutting, drilling, tube cutting and custom part review.

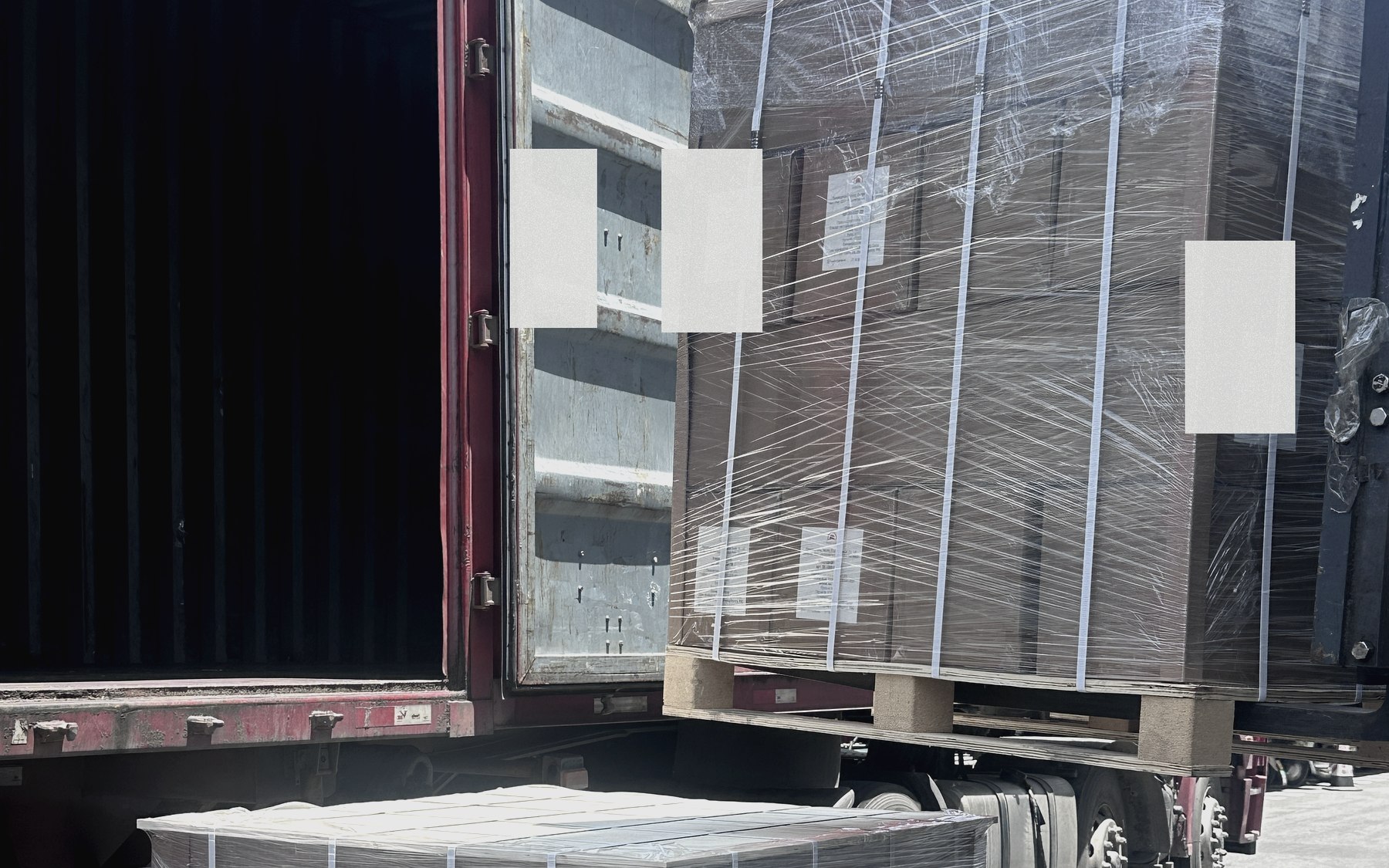

Export preparation

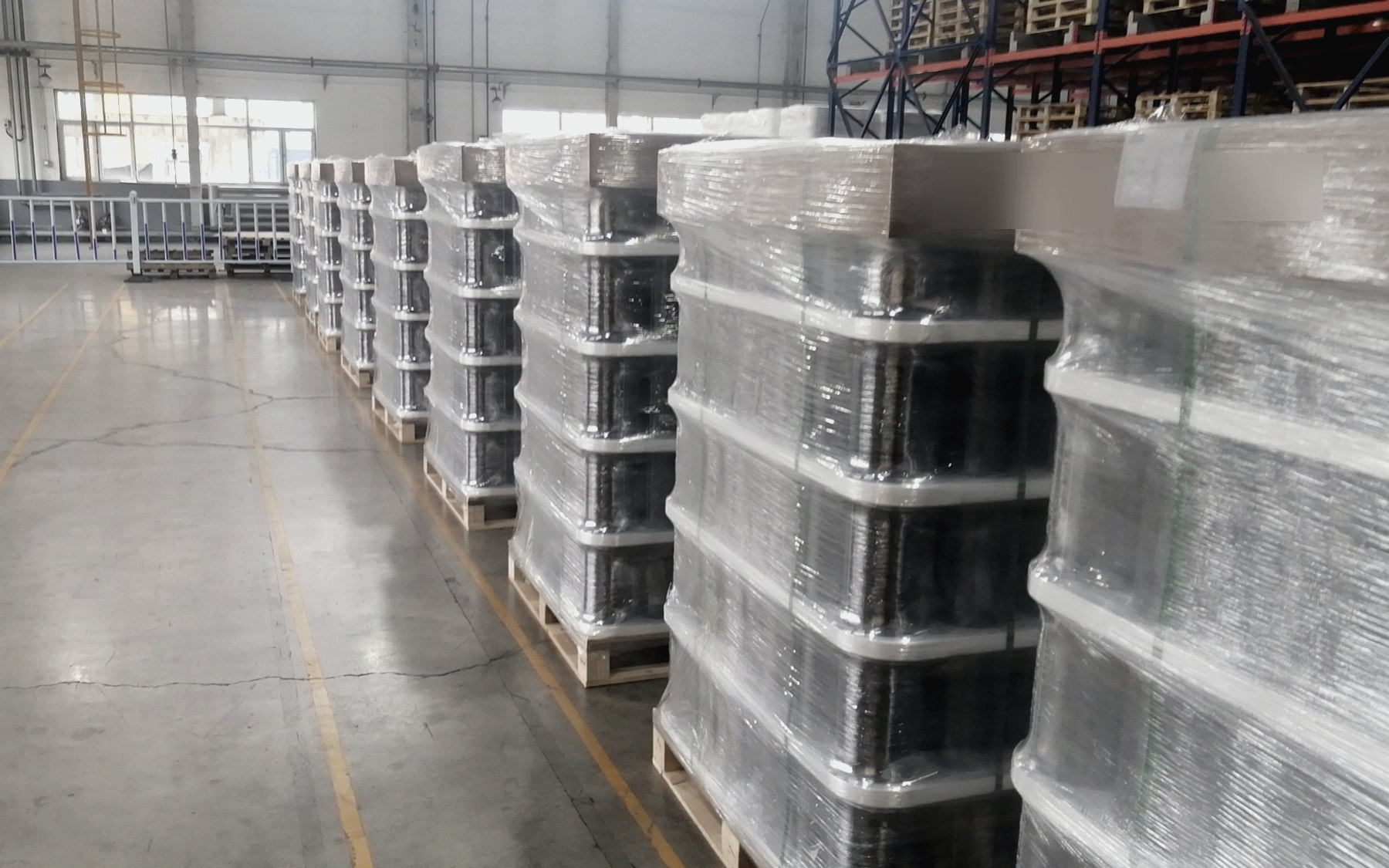

Roll, sheet, tube, pallet and temperature-sensitive packing plans.

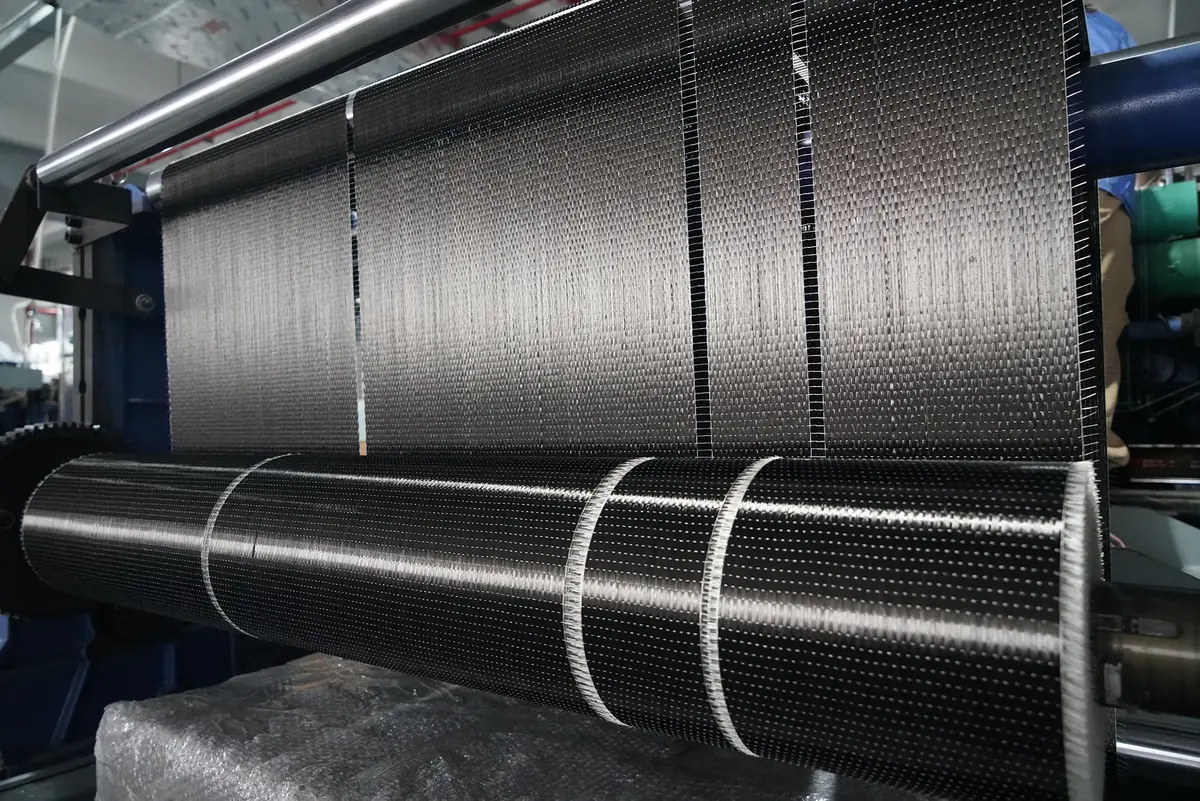

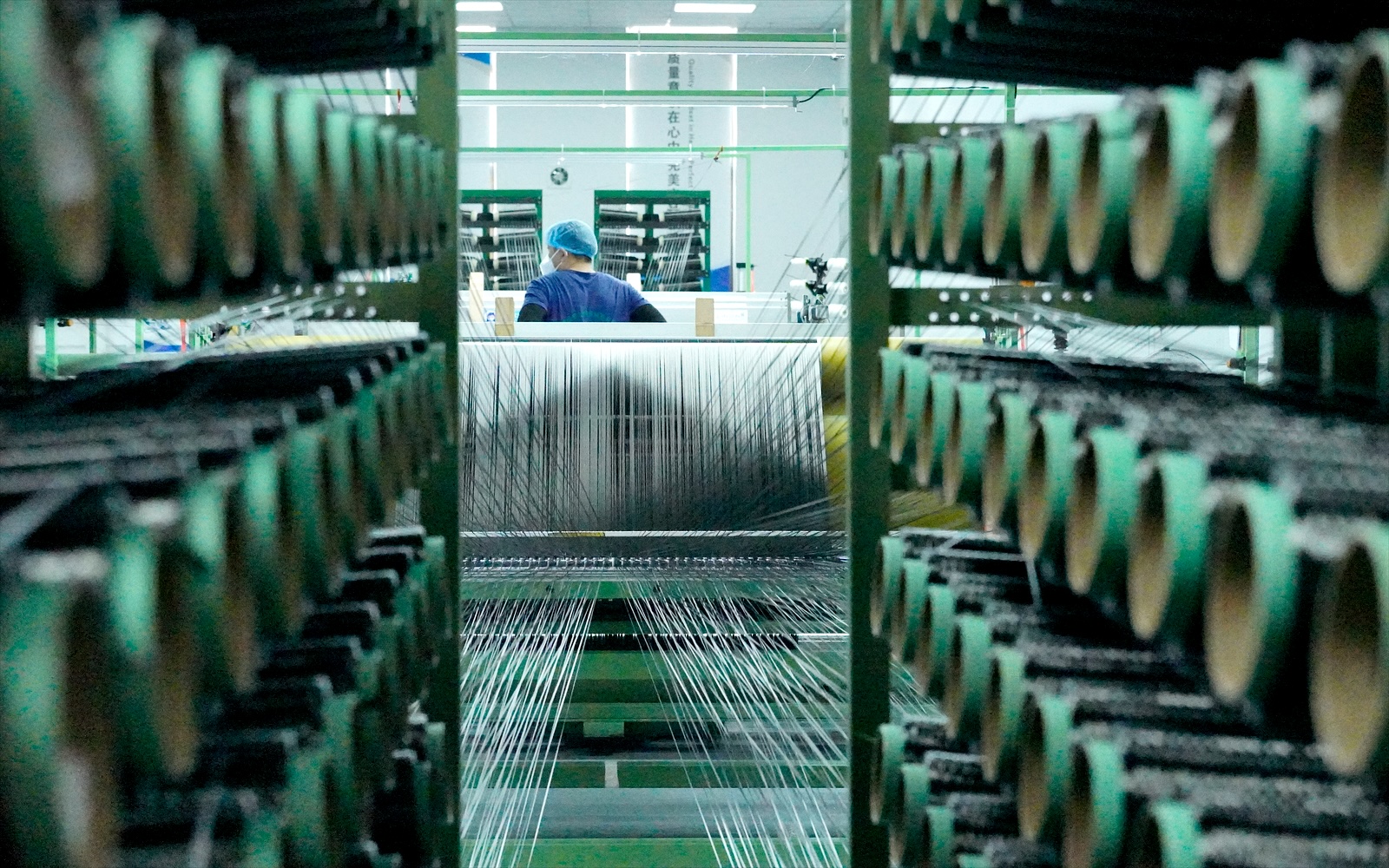

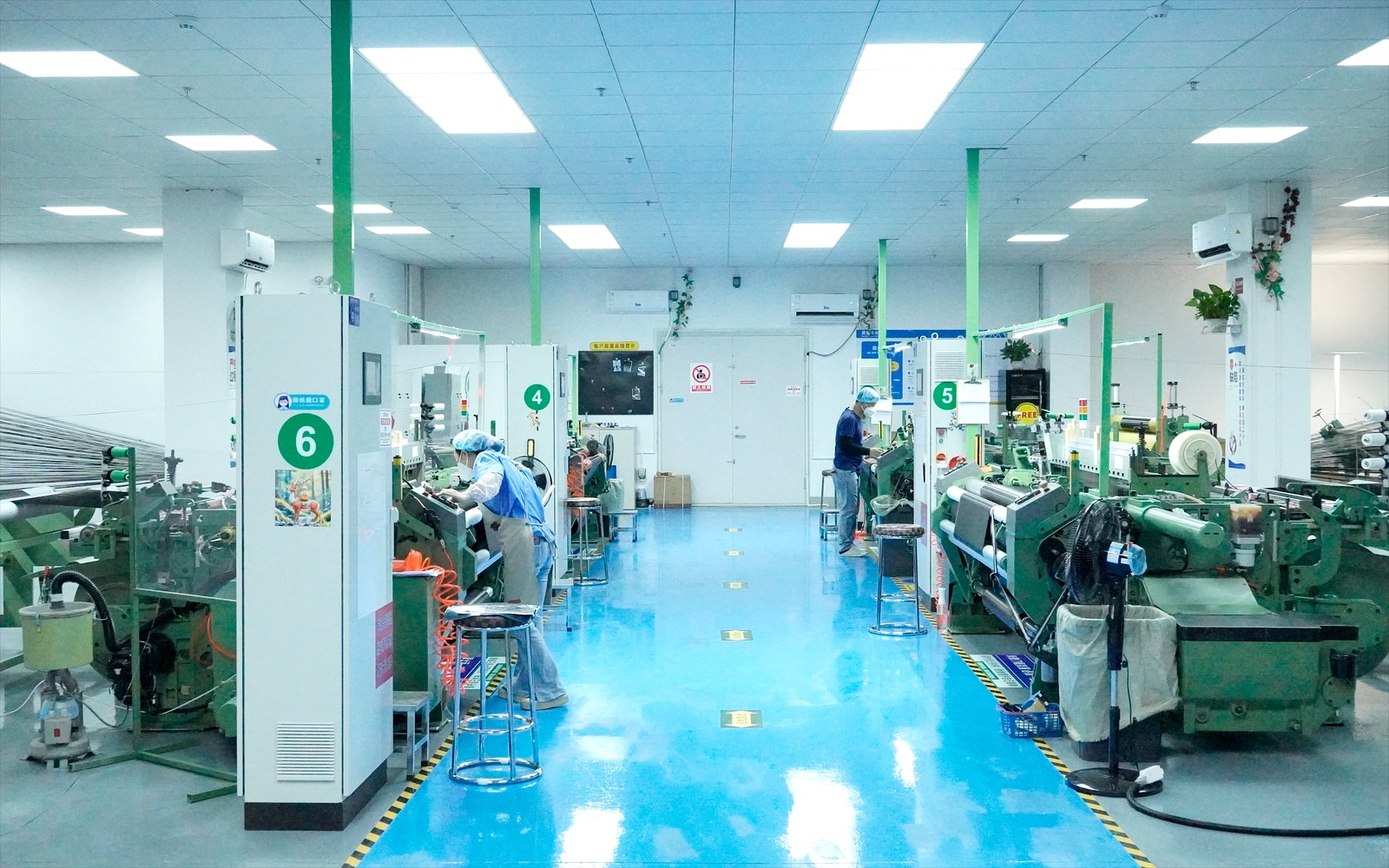

FRP HOME carbon fiber fabric production equipment
FRP HOME unidirectional carbon fiber fabric rollsExact machine count, nameplate capacity and available process windows are confirmed during final catalog review and project quotation.
05
Directory
Product Overview
A practical material range for reinforcement, molding, profiles, compounds and custom composite parts.
CompanyCompany Profile03
CompanyManufacturing Capability04
OverviewProduct Overview05
OverviewApplication Fields06
MaterialsWoven / UD / NCF / Spread Tow07-12
MaterialsCarbon Fiber Prepreg13
ProfilesCarbon Fiber Plates14-16
ProfilesCarbon Fiber Tubes17-18
FibersYarn / Roving / Chopped Fiber19-20

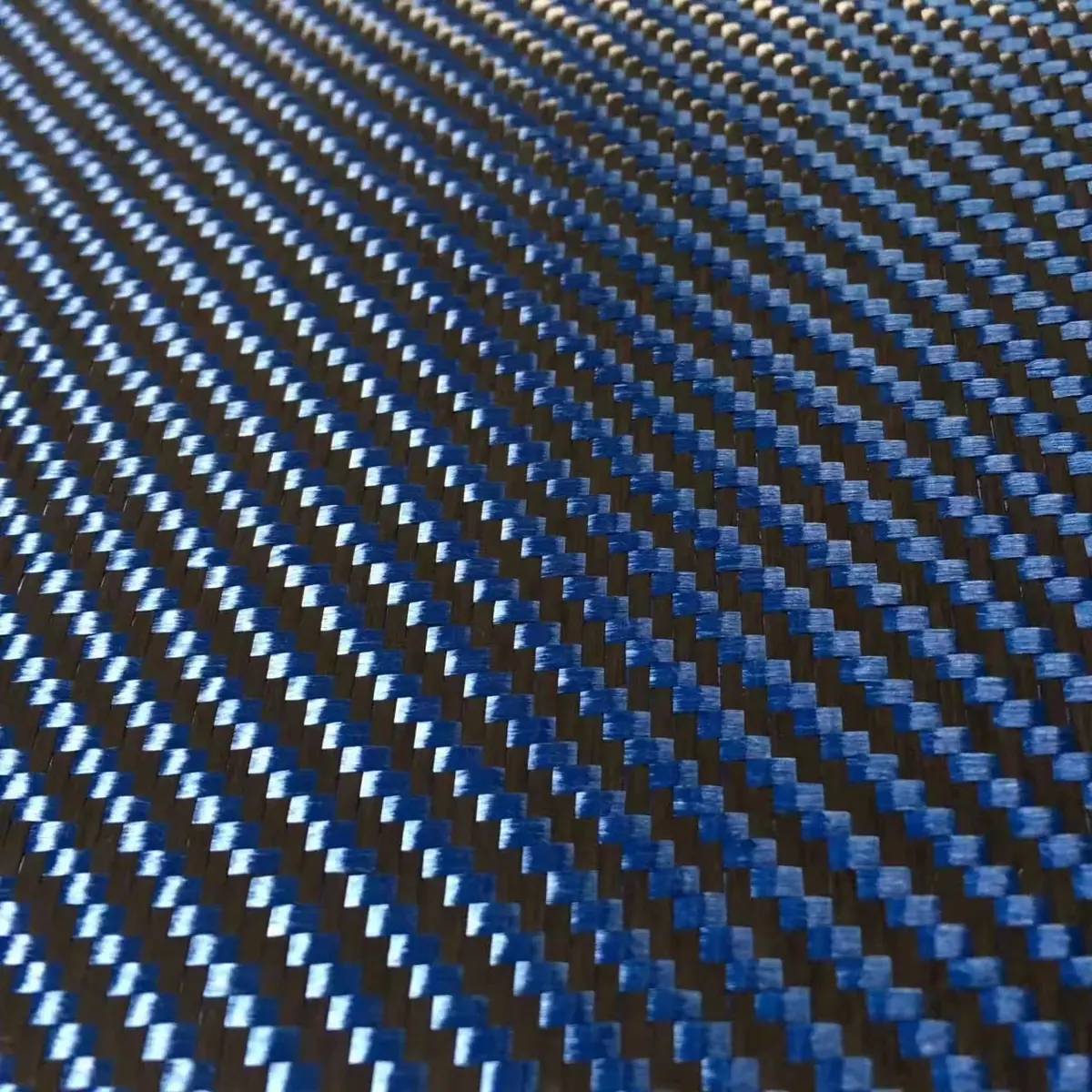

HybridAramid / Hybrid / TPU Fabrics21-22
SupportAccessories / Custom Products23-24
OperationsQuality / Packing / Customization25-28
InquiryRFQ Guide / Selection Matrix / Contact29-31
Insert complete product family image hereIMG-05
Standard supply + custom review
Final availability, tolerance, MOQ, lead time and documents are confirmed in the quotation.
06

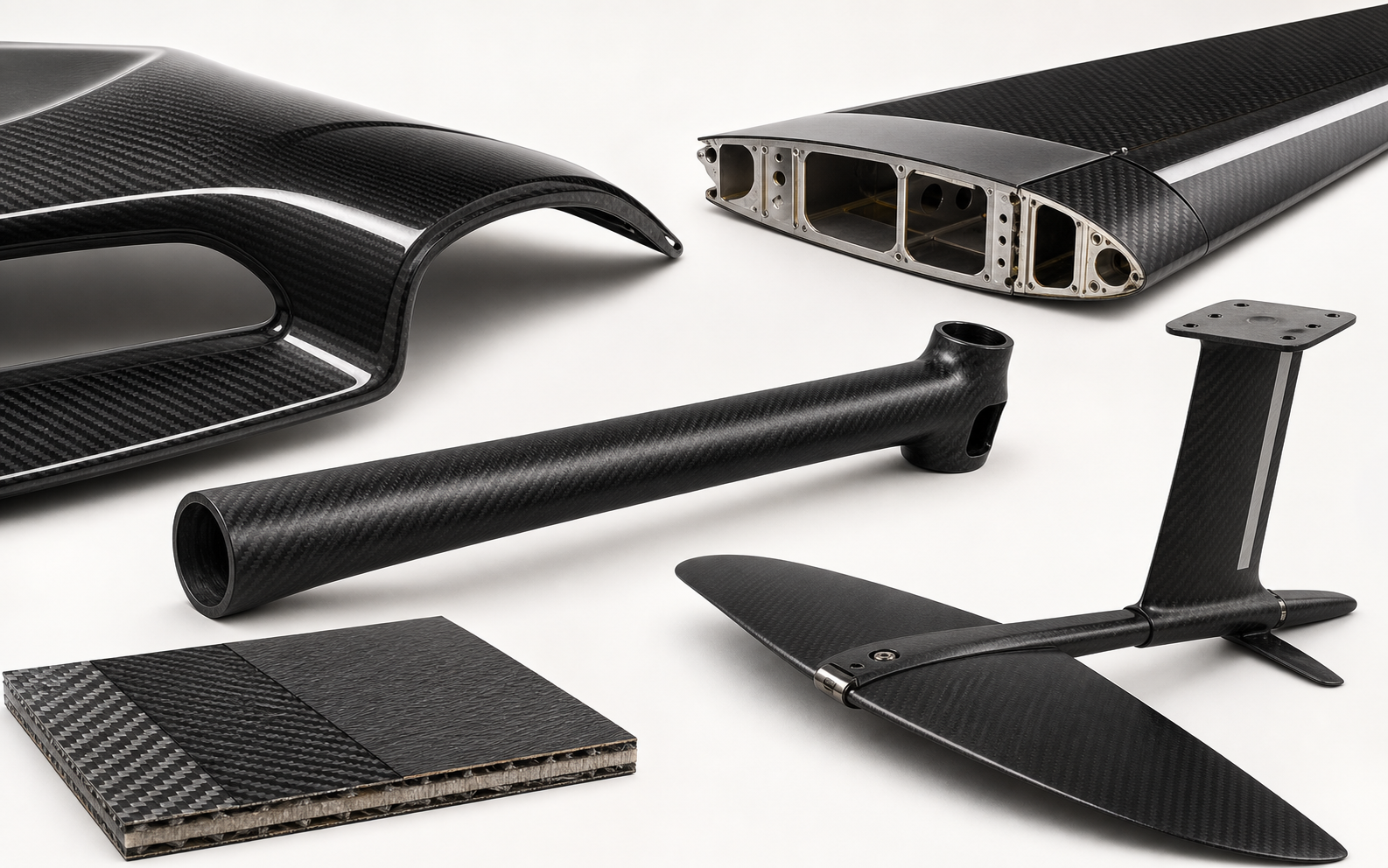

Applications
Built Around the End Process
Material selection starts with load direction, molding method, surface requirement, production volume and commercial target.
Insert carbon composite application montage hereIMG-06
Automotive
Panels, trim, structural parts and lightweight assemblies.
Sports equipment
Rods, boards, frames and performance components.
Marine
Masts, hull panels, paddles and water-sports products.
Construction
Externally bonded strengthening and infrastructure repair.
Drones & UAV
Frames, tubes, plates and mapping or inspection equipment.
Industrial
Automation, fixtures, machine parts and composite housings.
01
Carbon Fiber Woven Fabric
Balanced reinforcement, stable handling and recognizable carbon surface patterns.
- 3K / 6K / 12K
- Plain / twill / satin
- 1000 / 1270 / 1500 mm
- 50 / 100 m rolls

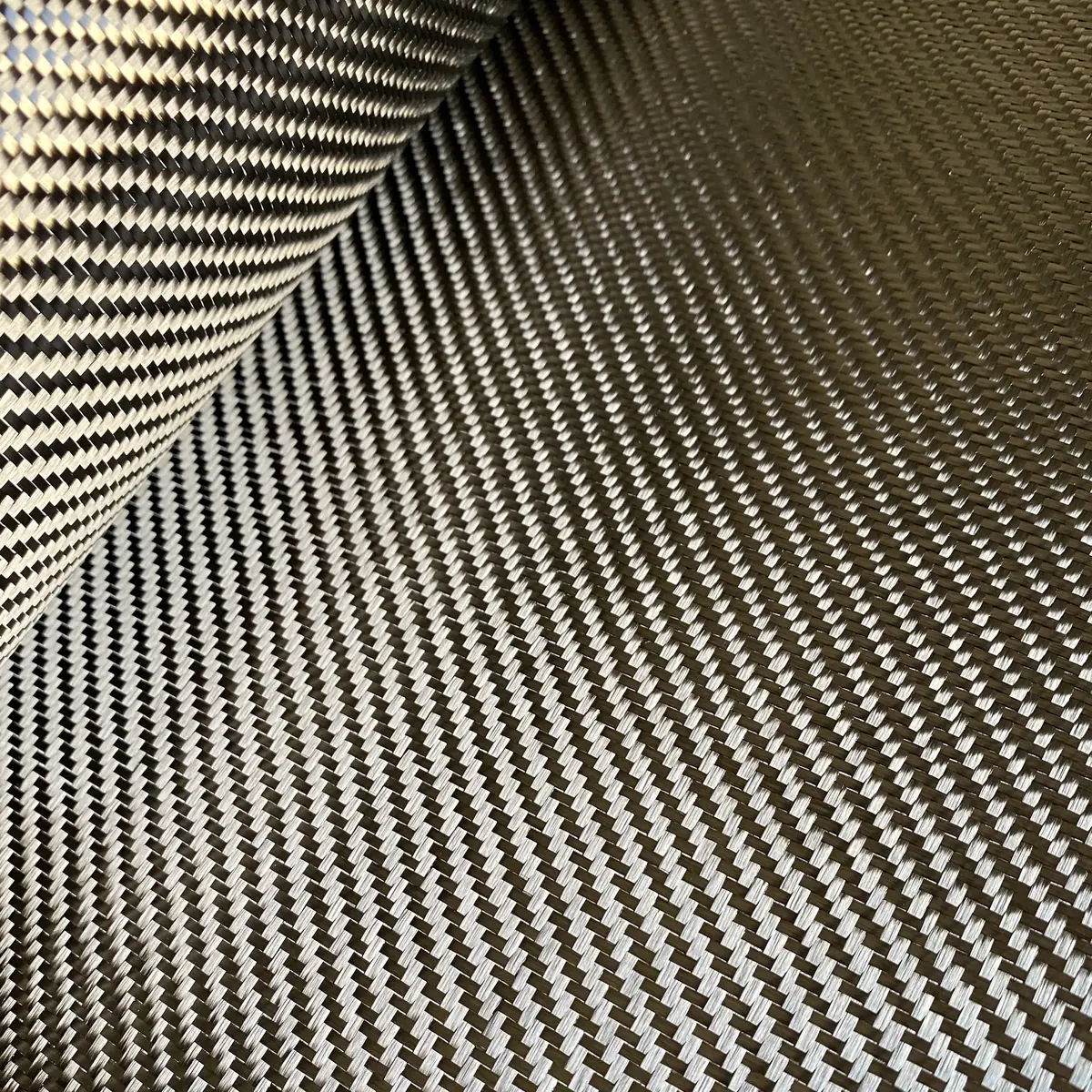

Twill carbon fiber woven fabric08
FRPH-WF
Carbon Fiber Woven Fabric
Balanced woven reinforcement for structural laminates and visible carbon surfaces.
Twill carbon fiber woven fabric supplied by FRP HOMEStandard range
| Product | Tow | Weight | Weave | Width | Roll |
|---|---|---|---|---|---|
| FRPH-WF3K200T | 3K | 200 g/m² | 2×2 twill | 1000 / 1270 / 1500 mm | 50 / 100 m |
| FRPH-WF3K240T | 3K | 240 g/m² | 2×2 twill | 1000 / 1270 mm | 50 / 100 m |
| FRPH-WF6K300 | 6K | 300 g/m² | Plain / twill | 1000 / 1270 mm | 50 / 100 m |
| FRPH-WF12K300 | 12K | 300 g/m² | Plain / twill | 1000 / 1270 mm | 50 / 100 m |
| FRPH-WF12K400T | 12K | 400 g/m² | 2×2 twill | 1000 / 1270 / 1500 mm | 50 / 100 m |
| FRPH-WF12K600T | 12K | 600 g/m² | 2×2 twill | 1000 / 1270 mm | 50 m |
Values are common catalog configurations. Final construction, tolerance, fiber source and packing are confirmed by order.
Applications
Automotive parts · Marine composites · Sports equipment · Industrial panels · Cosmetic carbon surfaces
Request this productShare the specification, quantity, application and destination for a practical quotation.
02
UD Carbon Fiber Fabric
Fiber placed in the principal load direction for efficient tensile reinforcement.
- 200 / 300 / 450 / 600 g/m²
- 12K / 24K
- 1000 mm or custom width
- Structural and industrial use
Unidirectional carbon fiber fabric rolls10
FRPH-UD
UD Carbon Fiber Fabric
Directional reinforcement with most fibers aligned in the primary load direction.

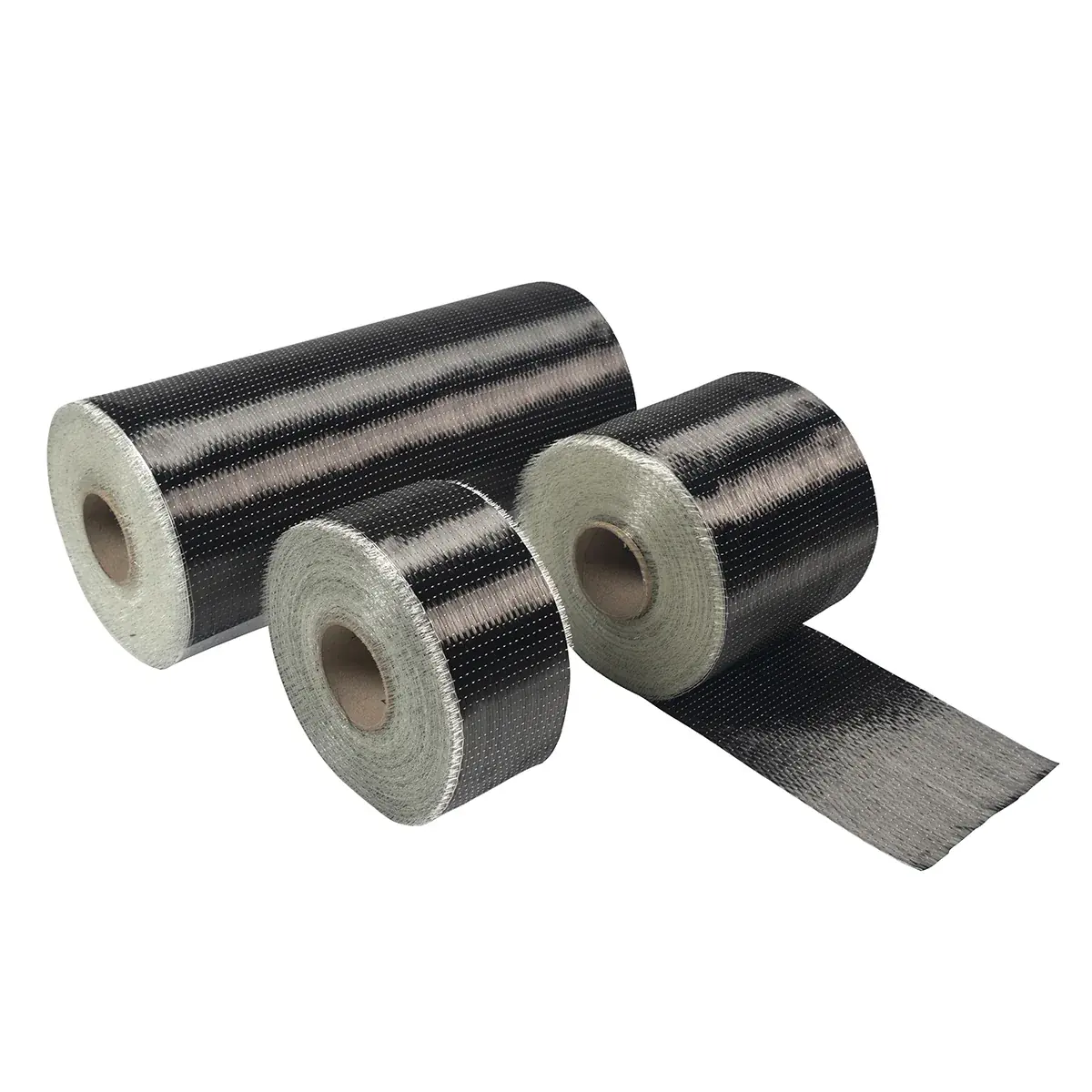

FRP HOME unidirectional carbon fiber fabric rollsStandard range
| Product | Weight | Fiber | Direction | Width | Typical use |
|---|---|---|---|---|---|
| FRPH-UD200 | 200 g/m² | 12K / 24K | 0° | 1000 mm / custom | Light directional layers |
| FRPH-UD300 | 300 g/m² | 12K / 24K | 0° | 1000 mm / custom | Reinforcement / plates |
| FRPH-UD450 | 450 g/m² | 12K / 24K | 0° | 1000 mm / custom | Industrial laminates |
| FRPH-UD600 | 600 g/m² | 12K / 24K | 0° | 1000 mm / custom | Heavy build-up |
Final binder, stitching, roll length and width tolerance depend on the selected construction.
Applications
Structural reinforcement · Carbon plates · Sports equipment · Industrial composite parts
Request this productShare the specification, quantity, application and destination for a practical quotation.
11
FRPH-NCF
Multiaxial Carbon Fiber Fabric / NCF
Stitched non-crimp reinforcement for efficient multi-directional laminate design.

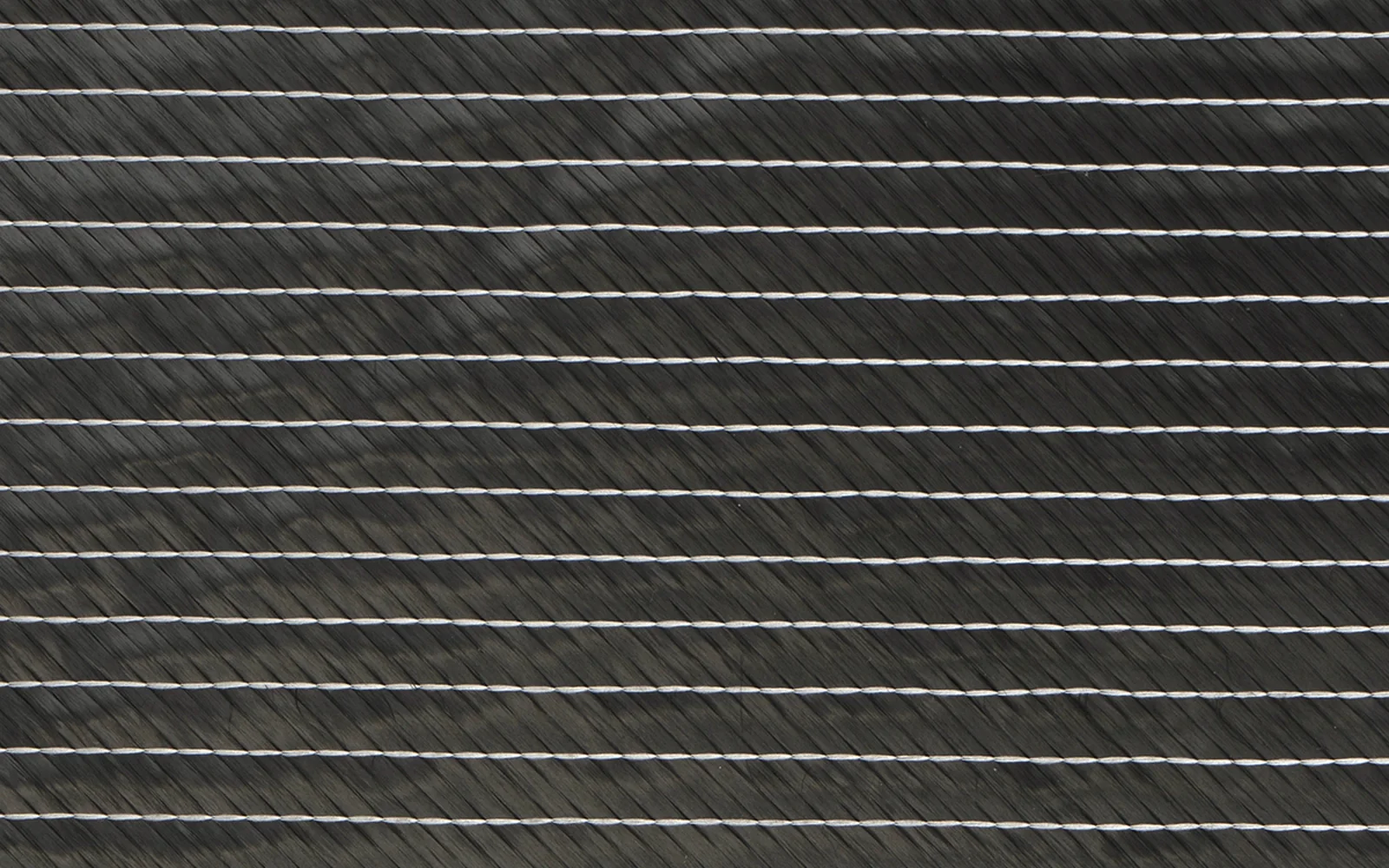

Carbon fiber multiaxial non-crimp fabricStandard range
| Construction | Orientation | Weight | Width | Primary function |
|---|---|---|---|---|
| Biaxial | +45° / -45° | 300 / 600 g/m² | 1270 mm / custom | Shear and torsion |
| Biaxial | 0° / 90° | 300 / 600 g/m² | 1270 mm / custom | Balanced panels |
| Triaxial | 0° / +45° / -45° | Custom | 1270 mm / custom | Multi-load shells |
| Quadraxial | 0° / +45° / 90° / -45° | Custom | 1270 mm / custom | Multi-directional layup |
Layer distribution, stitching yarn and architecture are engineered by project.
Applications
Marine structures · Automotive panels · Large composite shells · Industrial laminates
Request this productShare the specification, quantity, application and destination for a practical quotation.
12
FRPH-ST

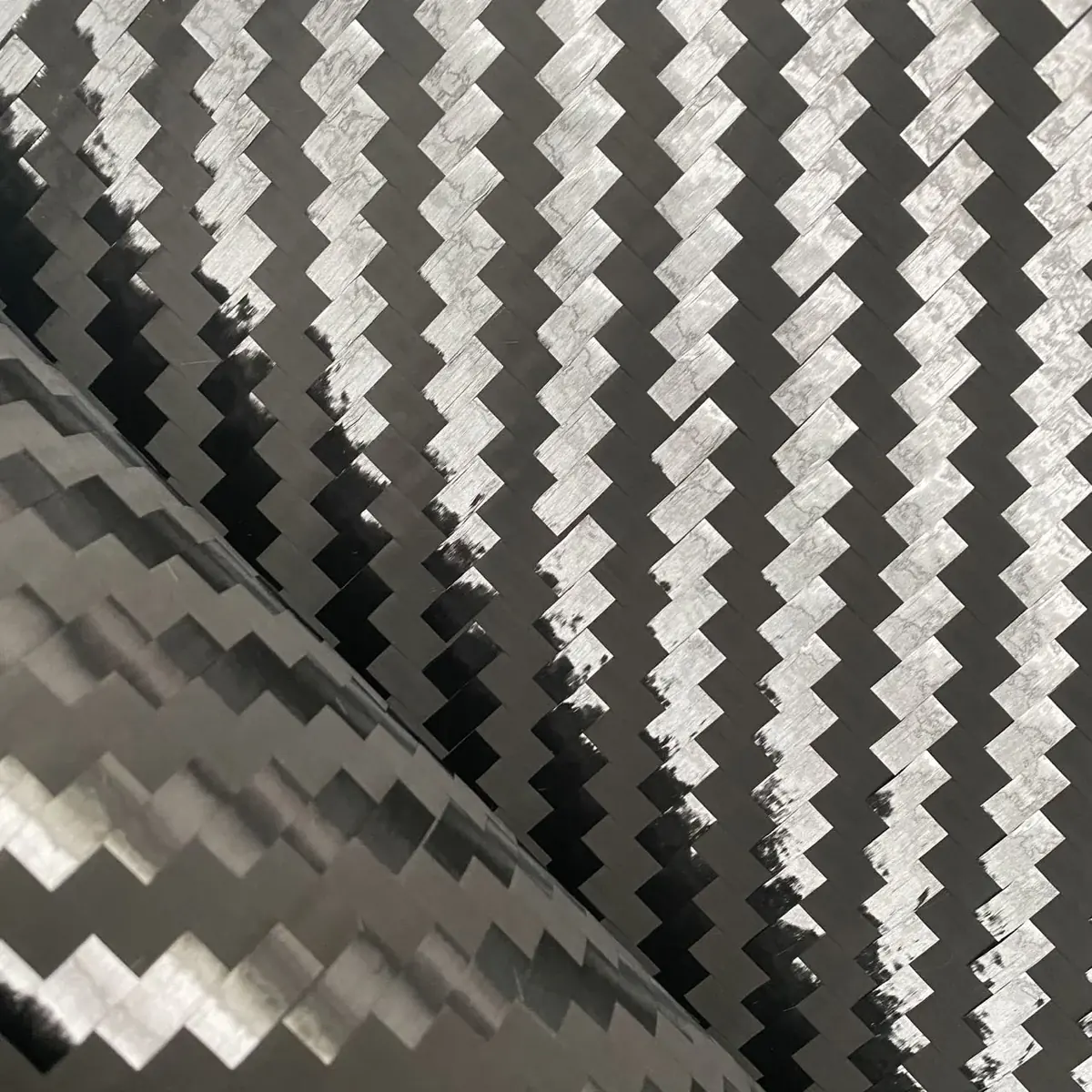

Spread Tow Carbon Fiber Fabric
Lightweight, thin carbon fabric with a wider spread-yarn structure and low visual crimp.
FRP HOME spread tow carbon fiber fabricStandard range
| Option | Construction | Weight | Width | Surface | Review item |
|---|---|---|---|---|---|
| Lightweight | Spread tow | By project | Custom | Fine checker | Tow and areal weight |
| Cosmetic | Spread tow | By project | Custom | Visual grade | Pattern consistency |
| Structural | Spread tow | By project | Custom | Low crimp | Laminate process |
Spread-tow availability depends on tow, spreading width, weave construction and MOQ.
Applications
Sports equipment · Automotive parts · Marine parts · Cosmetic composite surfaces
Request this productShare the specification, quantity, application and destination for a practical quotation.
13
FRPH-PP
Carbon Fiber Prepreg
Pre-impregnated carbon reinforcement for controlled resin content and repeatable molding.
Carbon fiber prepreg rollStandard range
| Product | Reinforcement | Fiber weight | Resin | Storage | Process |
|---|---|---|---|---|---|
| UD prepreg 200 | UD carbon | 200 g/m² | 35-40% typical | -18°C typical | Press / autoclave |
| UD prepreg 300 | UD carbon | 300 g/m² | 35-40% typical | -18°C typical | Press / autoclave |
| 3K twill prepreg | 3K woven | 200 g/m² | 35-40% typical | -18°C typical | Vacuum / autoclave |
| 12K prepreg | 12K woven or UD | By order | By system | By system | Composite molding |
Storage temperature, shelf life, cure profile and shipping method must follow the selected resin-system TDS.
Applications
Hot press · Vacuum bagging · Autoclave · Composite molding
Request this productShare the specification, quantity, application and destination for a practical quotation.
03
Carbon Fiber Plates
Pultruded strengthening profiles and laminated sheets for structural and precision applications.
- 0.5-30 mm
- Pultruded / laminated / CNC
- Matte / glossy / woven surface
- Custom size and machining
Carbon fiber laminate plates15
FRPH-CP

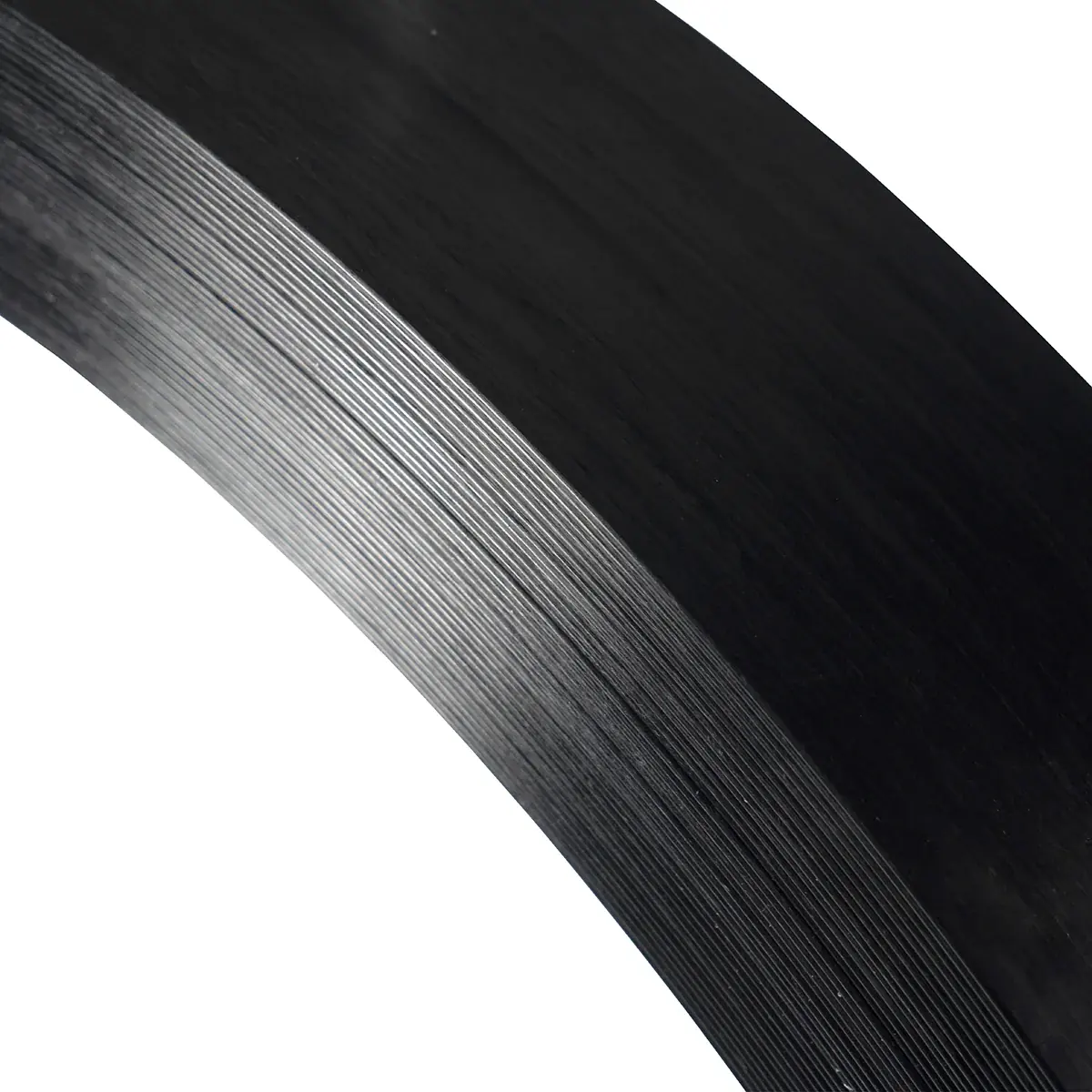

Pultruded Strengthening Plates
Axially reinforced CFRP profiles for externally bonded structural strengthening systems.
Pultruded carbon fiber strengthening plate| Thickness | Common width | Format | Surface | Typical application |
|---|---|---|---|---|
| 1.2 mm | 50 / 80 / 100 / 120 mm | Roll or straight | Sanded / peel-ply by order | General strengthening |
| 1.4 mm | 50 / 80 / 100 / 120 / 150 mm | Roll or straight | Bonding surface by order | Construction systems |
| 2.0 mm | 50 / 80 / 100 / 120 mm | By review | Bonding surface by order | Higher area stiffness |
| 3.0 mm | 50 / 80 / 100 mm | Straight length | Bonding surface by order | Heavy reinforcement |
| Custom | By project | By project | By project | Special structural use |
Structural design, substrate assessment, adhesive selection and design values must be approved by the project engineer. Supplier data alone is not a structural design.
Request this productShare the specification, quantity, application and destination for a practical quotation.
16
FRPH-LP

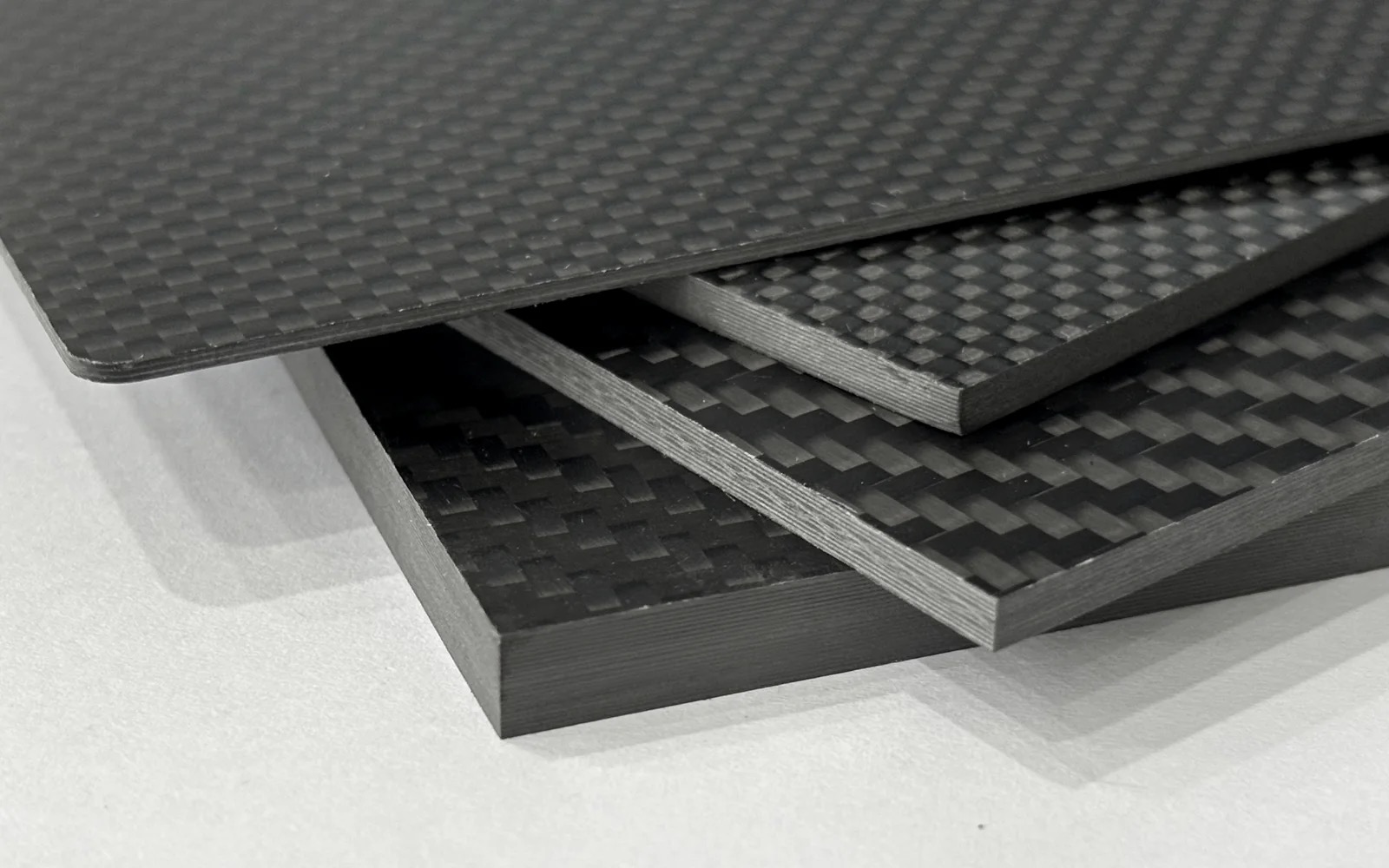

Laminated & CNC Carbon Plates

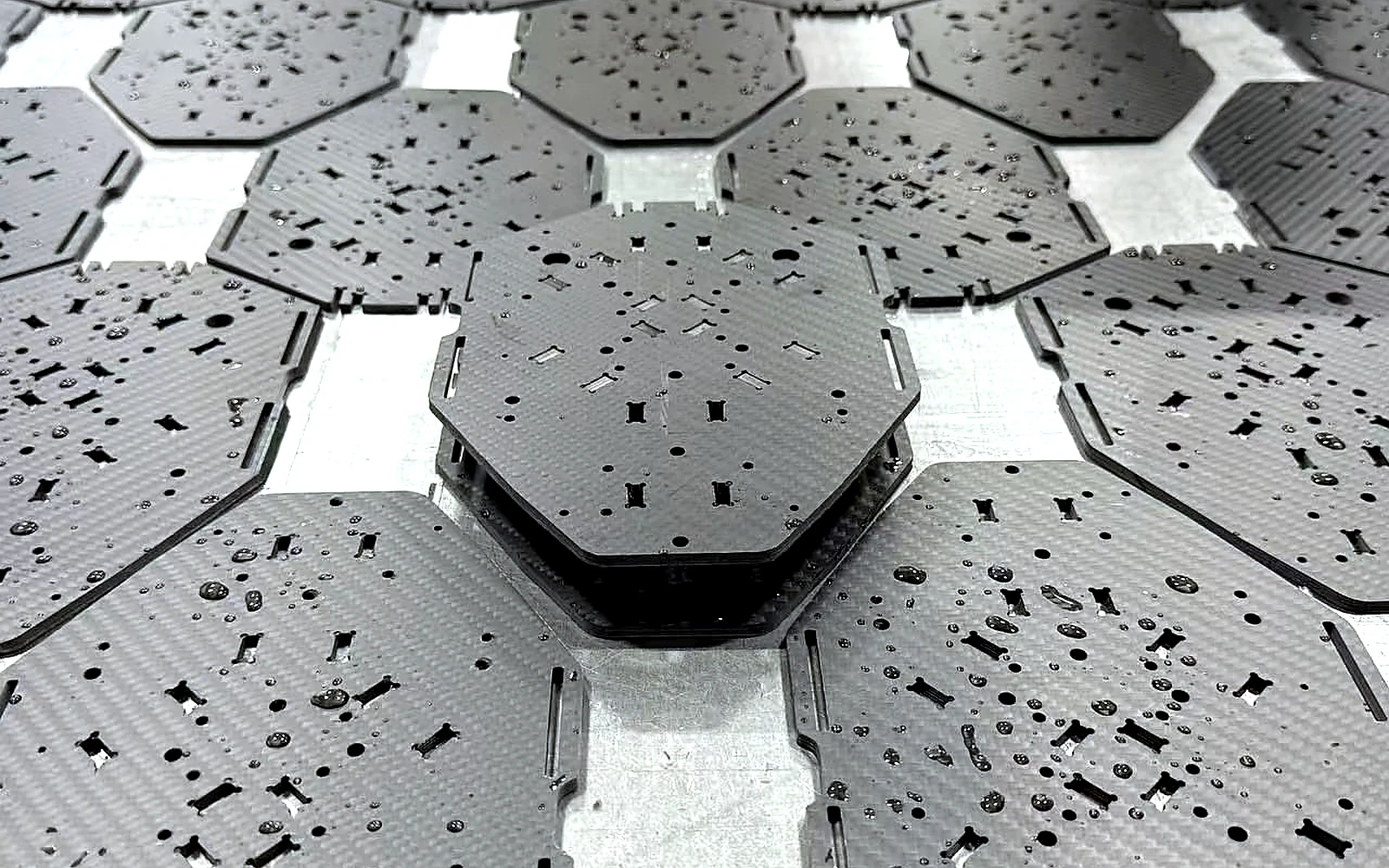

Cured carbon-fiber sheets for machined parts, frames, fixtures and visible composite panels.

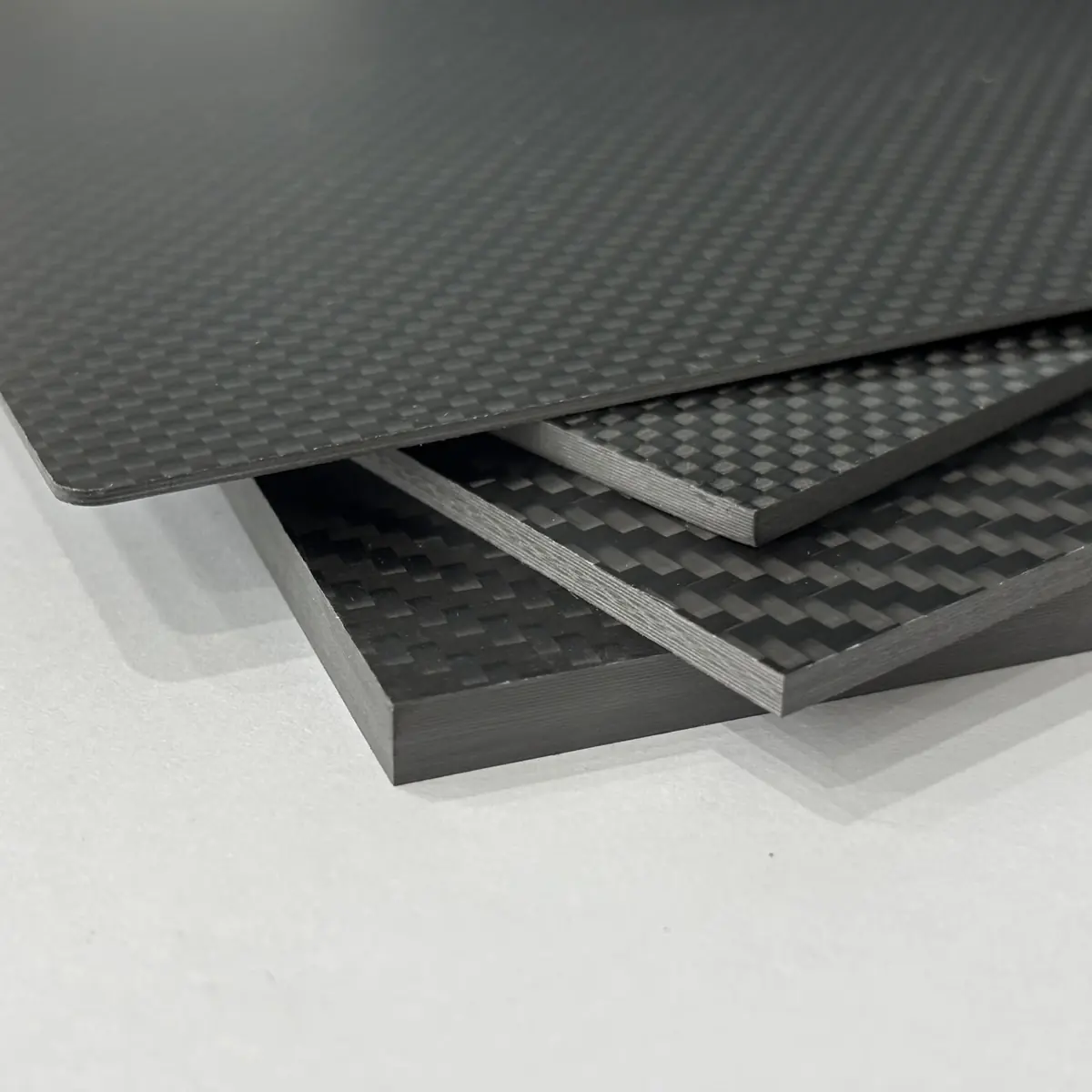

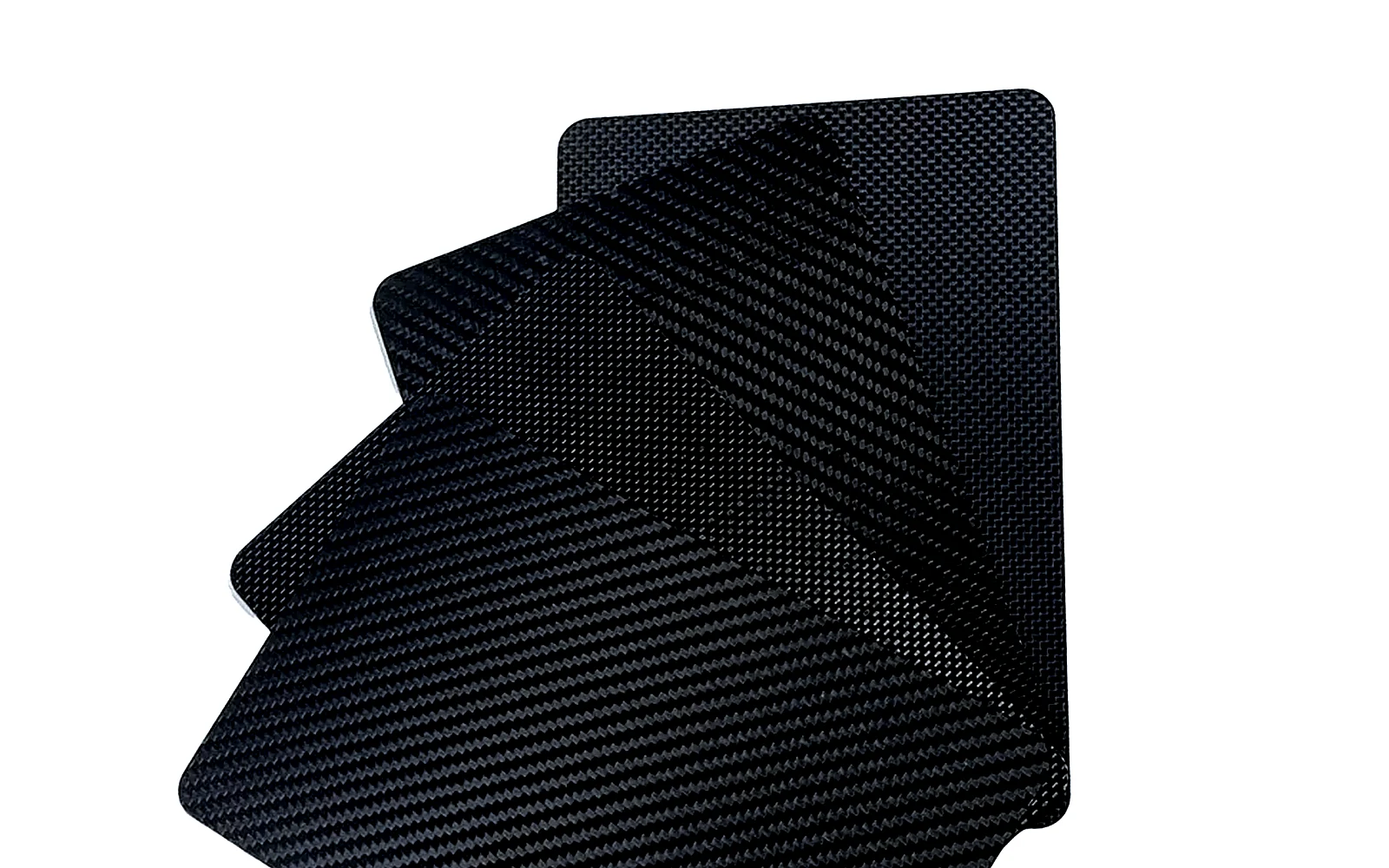

FRP HOME carbon fiber laminate sheets

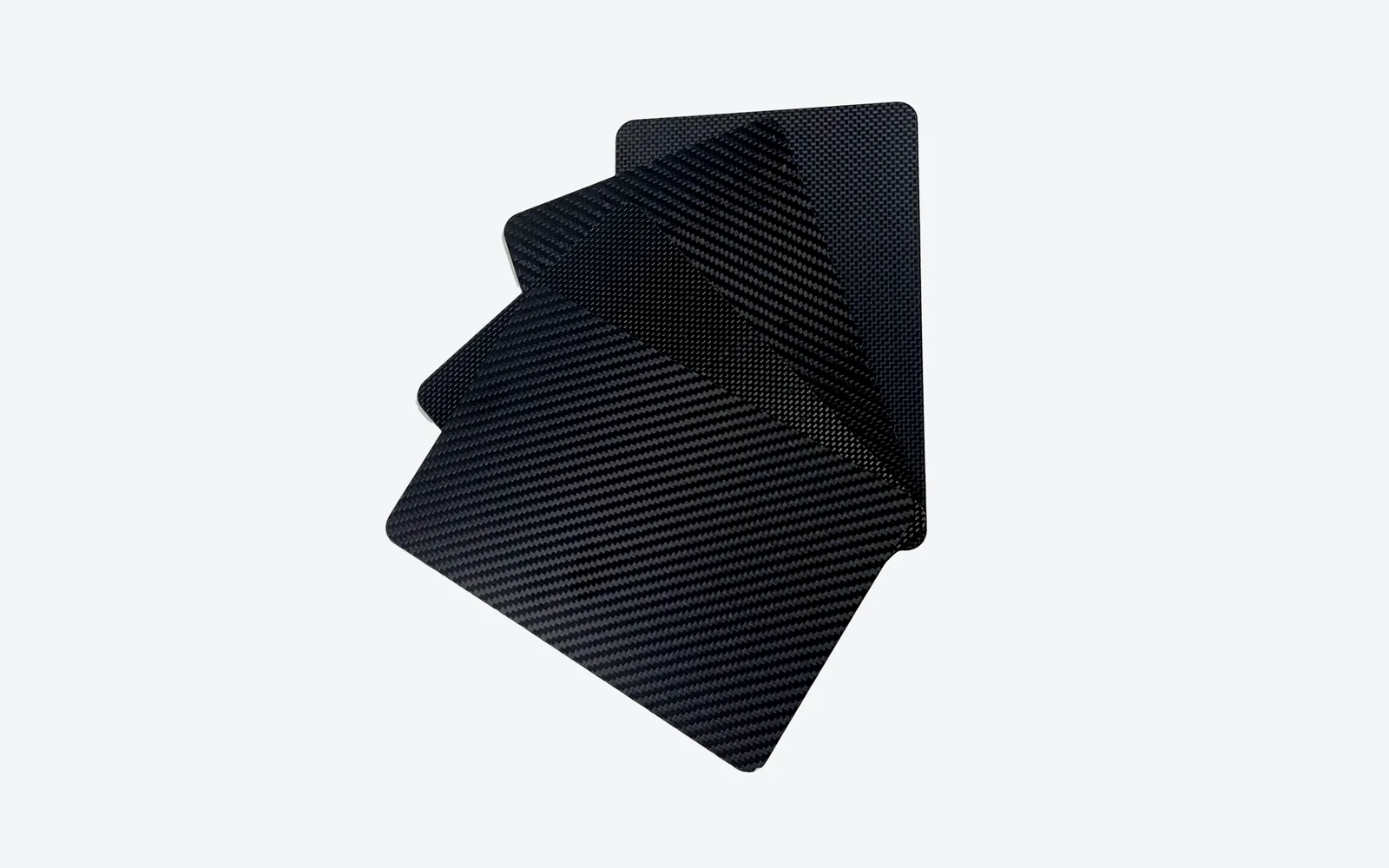

CNC machined carbon fiber plates| Type | Thickness | Surface | Size | Processing |
|---|---|---|---|---|
| Thin laminate | 0.5-1.0 mm | 3K twill / plain | Standard / custom | Cutting by review |
| General sheet | 1.5-3.0 mm | Matte / glossy | Standard / custom | CNC / drilling |
| Structural sheet | 4-10 mm | Woven / mixed layup | Custom | CNC / edge finish |
| Heavy plate | 10-30 mm | By layup | Project-specific | Drawing review |
Sheet thickness
Panel dimensions
Inner layup
Surface finish
Hole pattern
Packing protection
Request this productSend a DXF, STEP file or dimensioned drawing for machined carbon plate quotation.
04
Carbon Fiber Tubes
Roll-wrapped, pultruded and custom tube formats for visual and structural assemblies.
- Round / square / profiles
- OD / ID / wall customized
- Matte / glossy
- Cutting and drilling by review
Carbon fiber tube range18
FRPH-CT
Carbon Fiber Tubes
Roll-wrapped and pultruded tube systems for lightweight structures and visible components.

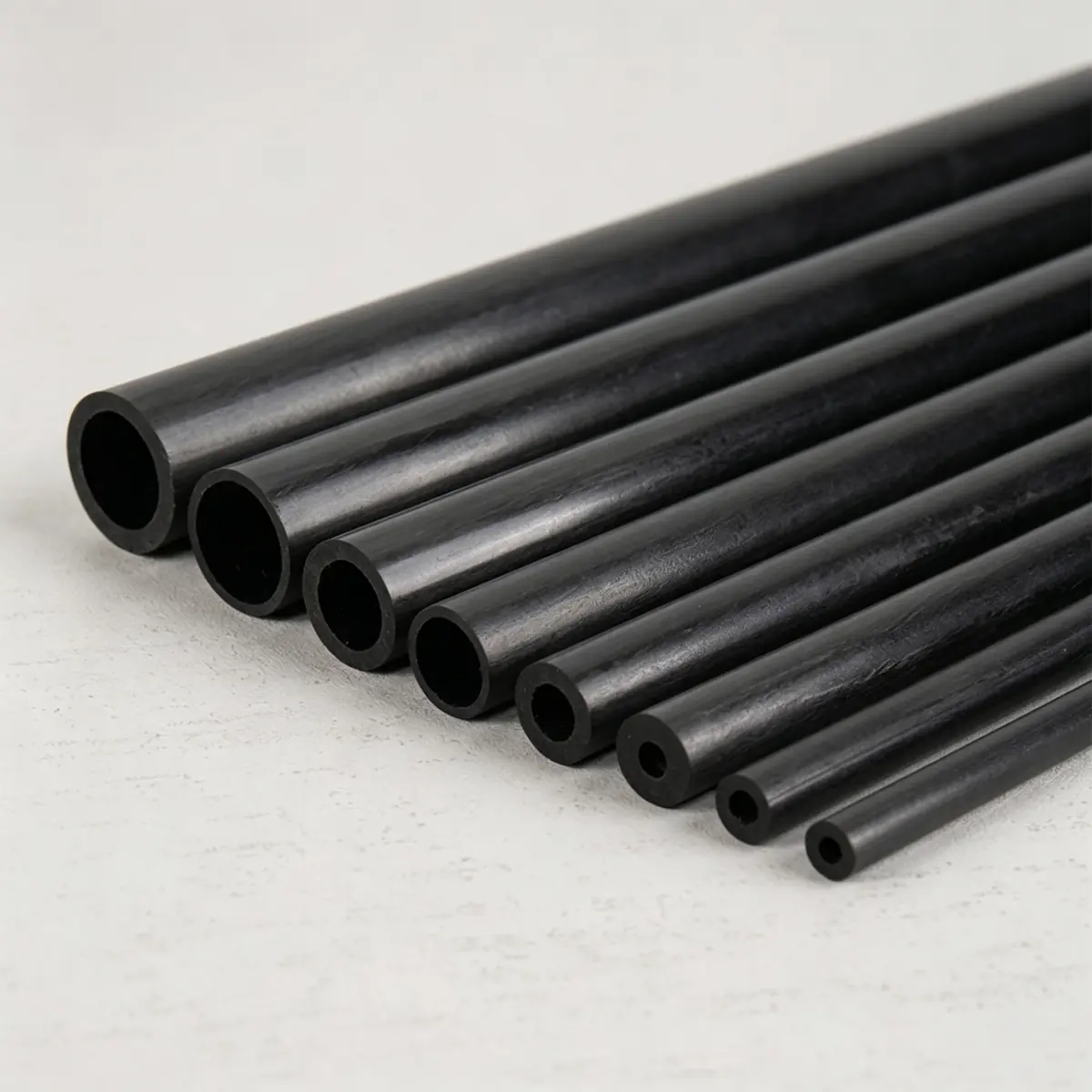

FRP HOME pultruded carbon fiber tube rangeStandard range
| Tube type | Primary fiber | Surface | Dimensions | Typical use |
|---|---|---|---|---|
| Roll-wrapped | Woven + UD layup | 3K matte / glossy | OD / ID / wall custom | Visible structural parts |
| Pultruded | Mainly axial | Black smooth / sanded | Profile by die | Industrial beams and supports |
| Square / profile | Process-dependent | Matte / custom | By drawing | Frames and assemblies |
| Custom tube | Engineered layup | By requirement | By drawing | Project-specific components |
Tube performance depends on layup, diameter, wall thickness, process and load direction.
Applications
Drones · Sports equipment · Industrial automation · Marine hardware · Consumer products
Request this productShare the specification, quantity, application and destination for a practical quotation.
19
FRPH-CFY

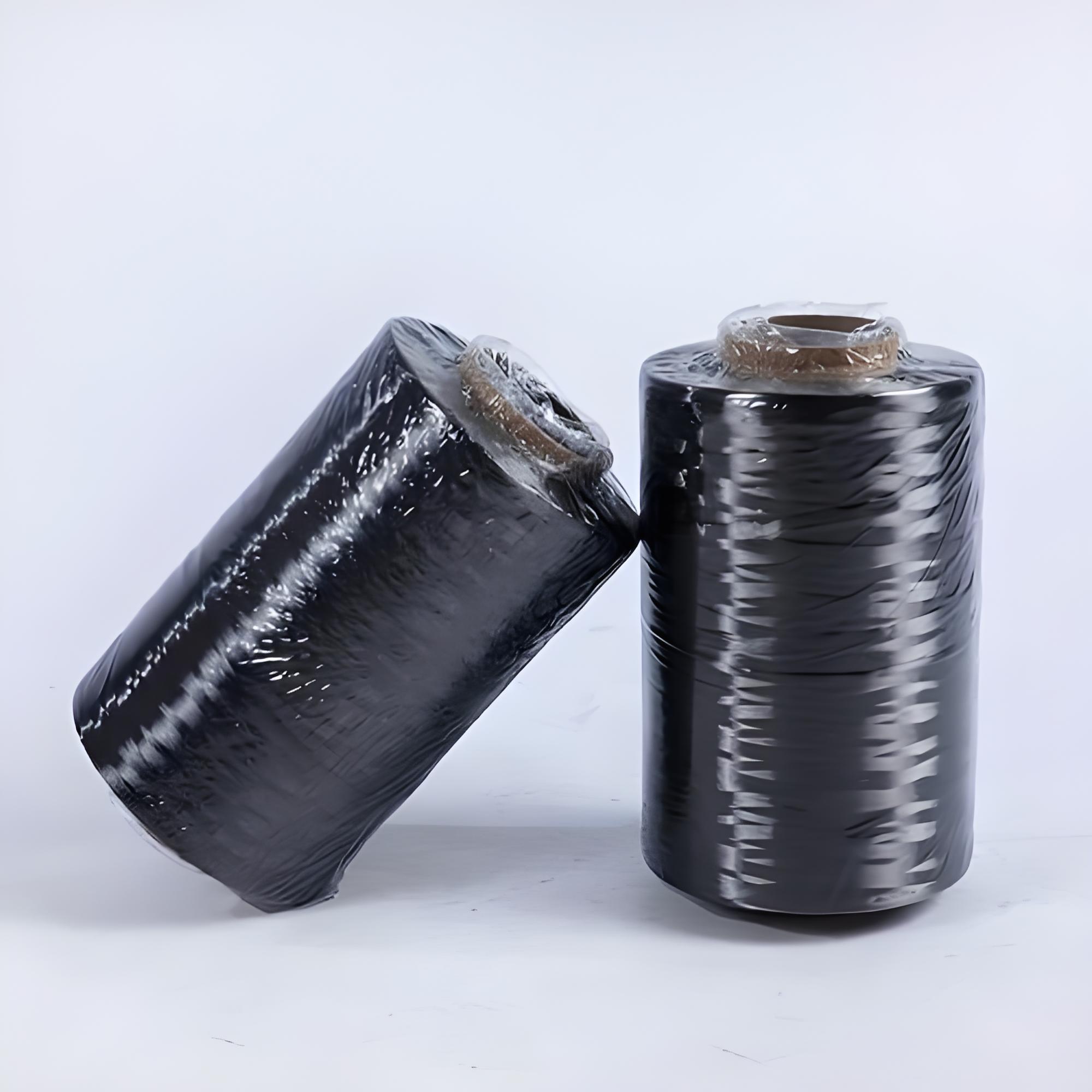

Carbon Fiber Yarn / Roving
Continuous carbon-fiber input material for weaving, pultrusion, winding and prepreg conversion.
Insert carbon fiber yarn and roving spool image hereIMG-19
Standard range
| Tow | Grade position | Sizing | Package | Downstream process |
|---|---|---|---|---|
| 3K / 6K | Fine tow / high-strength options | By process | Spool | Woven fabric / prepreg |
| 12K | T300 / T700 / high-strength | By matrix | Spool / carton | Weaving / pultrusion |
| 24K / 25K | Industrial and high-strength options | By matrix | Supplier standard | Pultrusion / winding |
| 48K | Large-tow industrial option | By process | Supplier standard | Industrial conversion |
Brand, grade, export terms and batch availability must be confirmed before quotation.
Applications
Weaving · Pultrusion · Filament winding · Prepreg · Chopped fiber
Request this productShare the specification, quantity, application and destination for a practical quotation.
20
FRPH-CCF

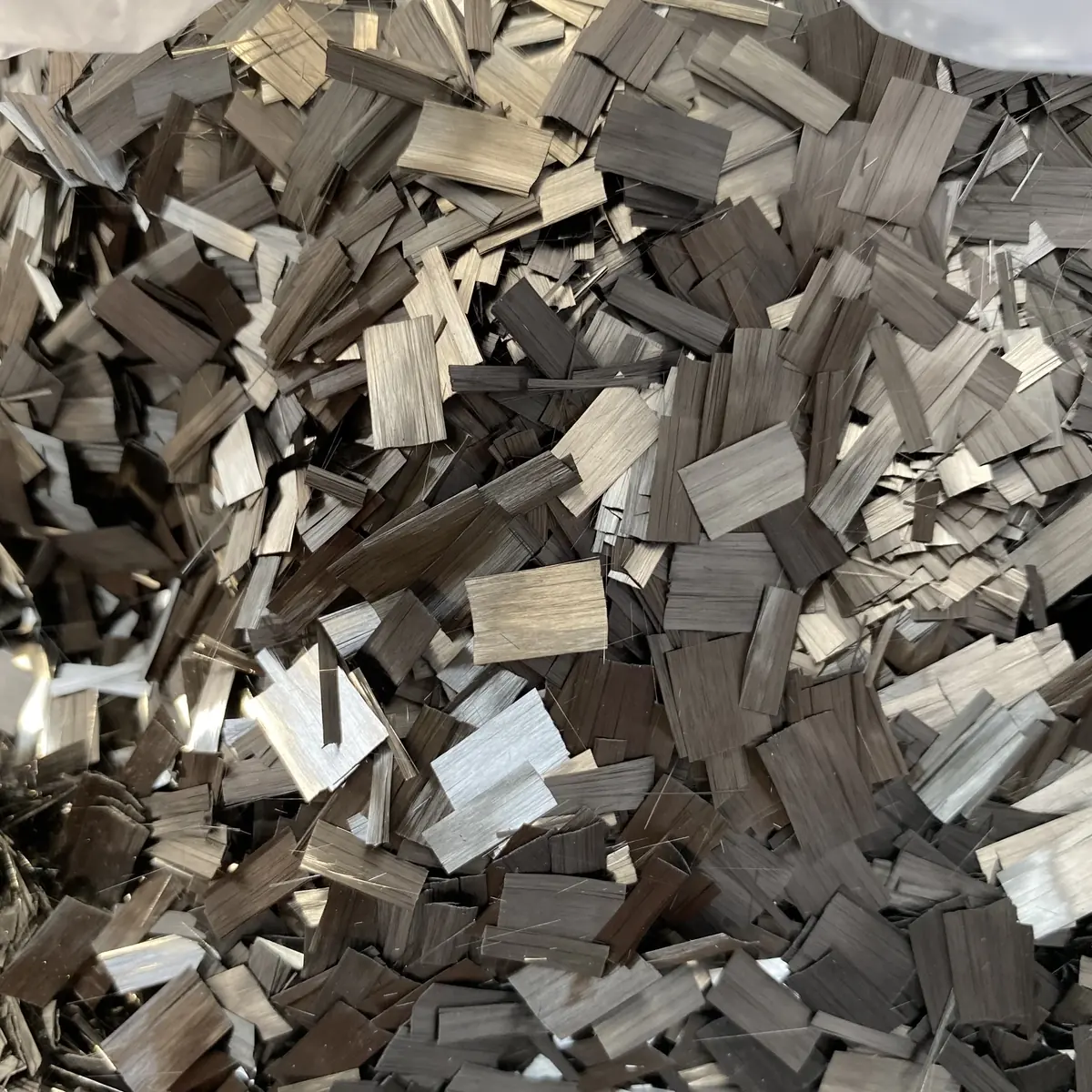

Chopped Carbon Fiber
Short carbon-fiber reinforcement for polymer compounds and specialty composite formulations.
FRP HOME chopped carbon fiberStandard range
| Grade | Length | Sizing | Packing | Typical use |
|---|---|---|---|---|
| FRPH-CCF3 | 3 mm | By matrix | Bag / carton | Fine polymer compounds |
| FRPH-CCF5 | 5 mm | By matrix | Bag / carton | Conductive plastics |
| FRPH-CCF6 | 6 mm | By matrix | Bag / carton | Injection molding |
| FRPH-CCF10 | 10 mm | By matrix | Bag / drum | Higher reinforcement demand |
| Custom | By review | By review | By order | Special composite formulations |
Customer compounding trials are recommended to confirm feeding, dispersion and final properties.
Applications
Reinforced plastics · Conductive plastics · Injection molding · Composite reinforcement
Request this productShare the specification, quantity, application and destination for a practical quotation.
21
FRPH-HYB
Aramid / Carbon Kevlar / Hybrid Fabric
Tough, lightweight and decorative reinforcements combining carbon, aramid or colored fibers.
Blue and black carbon aramid hybrid fabricStandard range
| Type | Fiber combination | Weave | Color | Typical use |
|---|---|---|---|---|
| Aramid fabric | Para-aramid | Plain / twill | Natural yellow | Impact and abrasion layers |
| Carbon/aramid | Carbon + aramid | Plain / twill | Black / yellow | Hybrid skins |
| Colored hybrid | Carbon + colored fiber | Pattern by review | Red / blue / custom | Decorative parts |
| Jacquard | Carbon or hybrid | Custom pattern | By yarn | Premium visible surfaces |
Use branded fiber names only when the actual supplied fiber brand is confirmed.
Applications
Protection · Sports equipment · Decorative composite parts · Lightweight reinforcement
Request this productShare the specification, quantity, application and destination for a practical quotation.
22
FRPH-SF
TPU & Composite Surface Fabrics
Flexible, decorative and functional surface materials reviewed against the customer’s forming and bonding process.

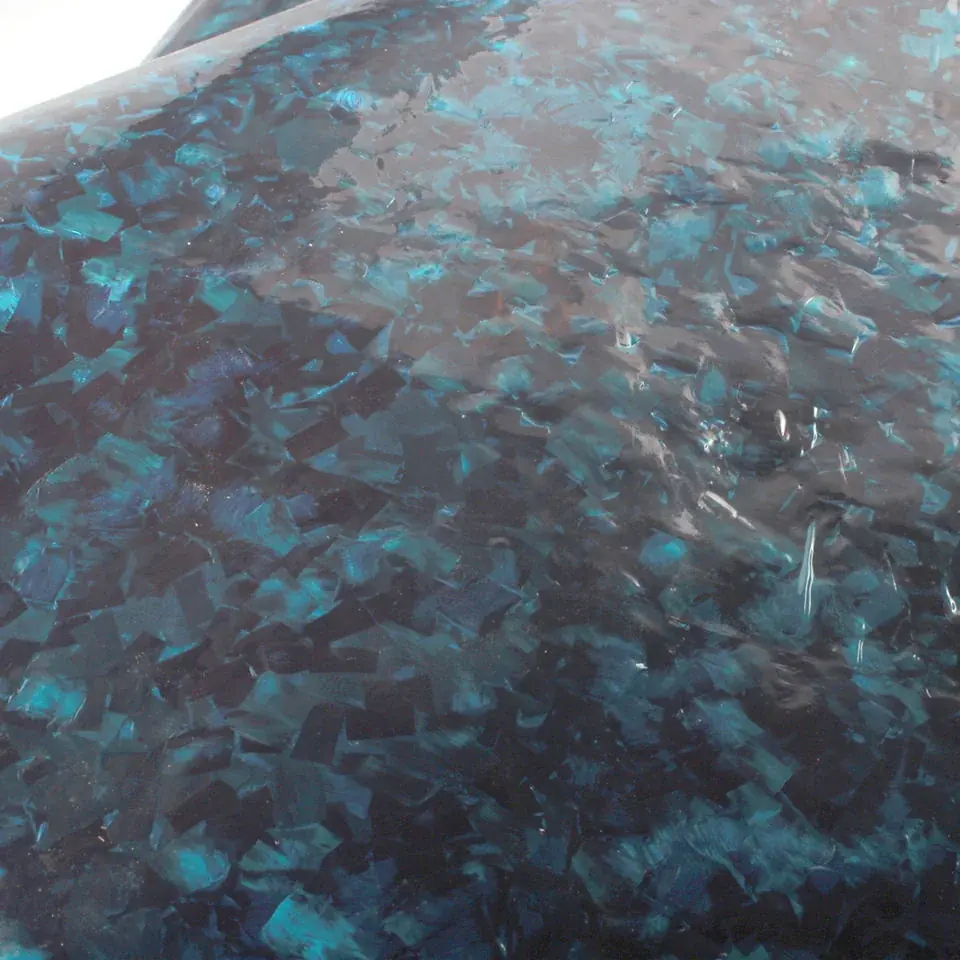

Decorative composite surface fabricProject-led specification
The old catalog shows TPU and composite surface fabrics but provides no verified construction or processing data. This product group remains available for inquiry and sample review.
- Substrate and surface material
- Thickness or areal weight
- Backing and bonding method
- Heat-forming window
- Color, texture and visual target
Sample confirmation recommended
Share the end product, process temperature and required surface appearance.
Request this productShare the specification, quantity, application and destination for a practical quotation.
23
FRPH-ACC
Composite Accessories
Supporting materials for bonding, vacuum processing, release and complementary reinforcement.
Insert composite accessories group image hereIMG-23
Standard range
| Accessory | Primary function | Key selection point | Packing |
|---|---|---|---|
| Epoxy adhesive | Composite bonding | Substrate / cure / strength requirement | Kit / pail |
| CFRP plate adhesive | Structural plate bonding | System compatibility | Kit |
| Release film / paper | Part and prepreg release | Temperature / perforation | Roll |
| Bagging film | Vacuum enclosure | Temperature / elongation | Roll |
| Peel ply | Surface preparation | Fiber / weave / temperature | Roll |
| Glass / basalt fabric | Complementary reinforcement | Weight / weave / width | Roll |
Accessory compatibility must be confirmed against resin, cure temperature and manufacturing process.
Applications
Structural bonding · Vacuum bagging · Prepreg processing · Composite layup · Hybrid reinforcement
Request this productShare the specification, quantity, application and destination for a practical quotation.
24
FRPH-OEM
Custom Composite Products
Drawing-based review for CNC plates, tube assemblies, molded parts and finished carbon components.
Custom CNC machined carbon fiber productsUseful inquiry inputs
01Dimensioned drawing
02DXF / STEP / CAD file
03Material or layup target
04Surface finish
05Tolerance
06Annual quantity
01
Review
Drawing, application and material requirement.
02
Sample
Tooling and prototype route where required.
03
Approve
Dimensions, finish and packing confirmed.
04
Produce
Batch production and inspection.
Request this productCustom parts are quoted after drawing and feasibility review.
25
Operations / 01
Quality Control
Inspection points are matched to product format, approved specification and order requirements.
Incoming material
Supplier, grade, lot and visible condition review.
In-process checks
Areal weight, width, construction, dimensions and appearance.
Final release
Specification, quantity, label, documents and packing review.
Insert fabric inspection image hereIMG-25A
Insert dimensional measurement image hereIMG-25B
Areal weight and width
Roll length and edge condition
Weave or fiber orientation
Plate thickness and flatness
Tube dimensions and surface finish
Prepreg resin-system checks by specification
Packing and label confirmation
Non-conformance communication
26
Operations / 02
Traceability & Documents
Document support follows product scope, confirmed specification and commercial agreement.
Product code
Links the quoted material to the approved specification.
Batch / roll ID
Supports production and shipment traceability where applicable.
TDS support
Product data issued for the selected material and revision.
COA support
Available according to product, batch and order agreement.
Packing list
Quantity, package count, dimensions and shipment references.
Export documents
Invoice, origin and other documents by destination and order.
Insert roll labels, batch records and document image hereIMG-26
No document inflation
Certificates, compliance marks and test reports are shown only when authentic, current and applicable to the supplied product.
27
Operations / 03
Export Packing
Protection is selected around material format, destination, handling risk and shipment method.
Insert roll packing image hereIMG-27A
Fabric & prepreg rolls
Core support, PE protection, cartons, pallets and cold-chain review where required.
Insert plate and tube packing image hereIMG-27B
Plates, tubes & parts
Surface protection, reinforced cartons, pallets or wooden cases by size and route.
01
Protect
Moisture, crushing, scratches and contamination
02
Identify
Product code, batch, quantity and buyer reference
03
Confirm
Packing photos and package data by request
04
Ship
Express, air, LCL, FCL or agreed route
28
Operations / 04
Customization Ability
Customization works best when the commercial and technical target is defined before sampling.
01
Define
Application, process, dimensions and quantity.
02
Specify
Fiber, weight, weave, resin, finish and tolerance.
03
Sample
Trial material or prototype where required.
04
Approve
Confirm specification, packing and acceptance points.
05
Repeat
Production supply against the approved reference.
FabricTow / weight / weave / width / roll
PrepregReinforcement / resin / content / cure / backing
PlateThickness / size / layup / finish / CNC
TubeProcess / OD / ID / wall / length / finish
Short fiberLength / sizing / moisture / packing
Custom partMaterial / drawing / tolerance / finish / quantity
Best starting point
Send a current specification, drawing, sample photo or end-use description.
29
Inquiry / 01
How to Request a Quotation
A complete inquiry helps us confirm feasibility, specification, MOQ, lead time, packing and price faster.
01
Product family
Woven / UD / prepreg / plate / tube / yarn / chopped fiber / other
02
Specification
Weight, weave, width, thickness, dimensions, fiber, resin or finish
03
Quantity
Trial quantity, first order and expected repeat demand
04
Application & process
What the material becomes and how it will be processed
05
Destination
Country, city, preferred Incoterm and shipment method
06
Required documents
TDS, COA, labels, inspection items and packing requirements
Copy into your inquiry
Product: ______ Specification: ______ Quantity: ______
Application/process: ______ Destination: ______ Required date: ______
30
Inquiry / 02
Product Selection Matrix
Use this page as a starting point. Final material selection remains application- and process-specific.
| Product family | Common process | Selection purpose | Main variables |
|---|---|---|---|
| Woven fabric | Wet layup / infusion / prepregging | Balanced skins and visible surfaces | Tow, weight, weave, width |
| UD fabric | Wet layup / pultrusion / lamination | Directional stiffness and strengthening | Weight, fiber, width |
| Multiaxial NCF | Infusion / RTM / large layup | Multi-directional structures | Angles, layer weight, width |
| Prepreg | Autoclave / hot press / vacuum bagging | Controlled resin and repeatable molding | Fiber, resin, cure, storage |
| Plates | Bonding / CNC / assembly | Strengthening and precision parts | Thickness, size, finish, machining |
| Tubes | Assembly / bonding / structural use | Lightweight beams and visible tubes | Process, OD/ID, wall, finish |
| Yarn / tow | Weaving / winding / pultrusion | Downstream conversion | Tow size, grade, sizing |
| Chopped fiber | Compounding / injection molding | Reinforced and conductive plastics | Length, sizing, packing |
Engineering review
Load-bearing and safety-critical parts require the buyer’s qualified engineering approval.
Process trial
Resin compatibility, forming, dispersion and machining should be confirmed by trial.
Commercial confirmation
MOQ, lead time, tolerance, documents and packing are defined in the quotation.
Request this productSend your application and process if the correct material group is not obvious.
31
Inquiry / 03
Let’s Build the Right Material Specification
Contact the export team with your product, process, quantity and destination.
CompanyZhejiang FRPHome New Material Co., Ltd. / 浙江福昊新材料有限公司
Emailsales@tzcarbon.com
Websitewww.myfrphome.com
LocationHaining, Zhejiang, China
INSERT CONFIRMED QR CODEWebsite or WhatsApp destination
Insert export team, factory or location image hereIMG-29
Confirm the legal address, active sales contacts and QR destination before final publication.
Materials shaped around your composite process.
Zhejiang FRPHome New Material Co., Ltd. / 浙江福昊新材料有限公司
