Carbon Fiber Multiaxial NCF Fabric
Carbon fiber multiaxial NCF fabric in 300gsm and 600gsm biaxial formats, plus UD, triaxial and quadriaxial constructions for vacuum infusion, RTM and custom composite laminates.
View product page02 / 07
Product center
Carbon fiber materials and products for export.
Select from UD fabric, woven carbon fabric, multiaxial NCF fabric, prepreg fabric, aramid fabric, structural reinforcement CFRP plates, carbon tubes, 3K laminate sheets, milled carbon fiber powder, chopped fiber, yarn and tow, and custom carbon products.
Priority products
Six procurement routes for current priority materials.
Start with the relevant product page, then confirm specification, quantity, process, destination, final application and required TDS, COA or inspection documents in the RFQ. Published references remain subject to quotation and order confirmation.
3K Carbon Fiber Laminate Sheet
3K twill carbon fiber plate and laminate sheet with matte or glossy surfaces, custom thicknesses and CNC cutting for panels, fixtures and drawing-controlled industrial parts.
View product pageCarbon Fiber Yarn & Tow
Continuous carbon fiber yarn, carbon fiber tow and carbon fiber roving supplied on bobbins for weaving, braiding, filament winding, pultrusion, prepreg production and chopping.
View product pageUD Carbon Fiber Fabric
Unidirectional carbon fiber reinforcement with most fibers aligned in one direction for directional strength, stiffness and controlled layup orientation.
View product pageCarbon Fiber Structural Strengthening System
System materials including UD carbon fiber fabric, pultruded CFRP plates and structural epoxy resin for concrete, bridge and building reinforcement projects.
View product pageWoven Carbon Fiber Fabric
Bidirectional woven carbon fiber reinforcement made by interlacing carbon fiber yarns in warp and weft directions for balanced handling and visible CFRP surfaces.
View product pageComplete portfolio
Carbon fiber composite materials by category.
We supply carbon fiber fabrics, prepregs, pultruded plates, tubes, carbon fiber yarn, chopped fiber, milled carbon fiber powder, aramid fabrics and customized composite products for industrial, sports, automotive, marine, construction and composite manufacturing applications.
01
Carbon Fiber Reinforcements
Dry carbon fiber fabrics and textile reinforcements for composite manufacturing.
- Key products
- Woven fabric, UD fabric, spread tow fabric, multiaxial NCF, hybrid and aramid fabrics
- Common applications
- Composite laminates, visible CFRP surfaces, automotive, sports, civil UAV and industrial panels
Non-Crimp Fabric
Carbon Fiber Multiaxial NCF Fabric
Carbon fiber multiaxial NCF fabric in 300gsm and 600gsm biaxial formats, plus UD, triaxial and quadriaxial constructions for vacuum infusion, RTM and custom composite laminates.
Main specification range
View product page - Construction
- UD / biaxial / triaxial / quadriaxial
- Fiber angles
- 0° / 90° / +45° / -45°
- Documented formats
- 300 / 600 g/m² biaxial NCF
Woven Carbon Fabric
Woven Carbon Fiber Fabric
Bidirectional woven carbon fiber reinforcement made by interlacing carbon fiber yarns in warp and weft directions for balanced handling and visible CFRP surfaces.
Main specification range
View product page - Documented product
- 3K / 200 g/m² / twill
- Documented width
- 1000-1500 mm
- Documented roll
- 100 m nominal
Directional Reinforcement
UD Carbon Fiber Fabric
Unidirectional carbon fiber reinforcement with most fibers aligned in one direction for directional strength, stiffness and controlled layup orientation.
Main specification range
View product page - Fiber direction
- 0 degree unidirectional
- Published references
- 200 g/m² strengthening supply reference; 300 g/m² product TDS
- Documented width
- 100-500 mm for the 300 g/m² product
Woven Carbon Fabric
Spread Tow Carbon Fiber Fabric
Spread tow carbon fiber fabric with flat tow architecture and larger visual pattern options such as 8x8 mm and 10x10 mm for lightweight panels, decorative CFRP surfaces and thin laminates.
Main specification range
View product page - Pattern size
- 8x8 mm / 10x10 mm; custom by review
- Tow size
- 12K / 24K; custom by specification
- Fiber grade
- T700 / custom by review
02
Carbon Fiber Yarn, Tow & Precursor Materials
Upstream carbon fiber yarn, tow, roving and PAN-based precursor materials.
- Key products
- 1K, 3K, 6K, 12K, 24K, 48K and 50K carbon fiber yarn and tow
- Common applications
- Weaving, braiding, filament winding, pultrusion, prepreg production and chopping
Carbon Fiber Yarn, Tow & Precursor Materials
Carbon Fiber Yarn & Tow
Continuous carbon fiber yarn, carbon fiber tow and carbon fiber roving supplied on bobbins for weaving, braiding, filament winding, pultrusion, prepreg production and chopping.
Main specification range
View product page - Product type
- Carbon fiber yarn / carbon fiber tow / carbon fiber roving
- Tow size
- 1K / 3K / 6K / 12K / 24K / 48K / 50K
- Grade
- T300 / T700 / T800 / high modulus / custom
03
Prepreg Carbon Fiber Materials
Resin-impregnated carbon fiber materials for controlled composite molding.
- Key products
- Woven prepreg, 3K twill prepreg, UD prepreg, spread tow prepreg and custom prepreg
- Common applications
- Autoclave molding, hot press, compression molding and repeatable CFRP parts
Pre-Impregnated Materials
Prepreg Carbon Fiber Materials
Carbon fiber reinforcements pre-impregnated with resin for composite molding processes requiring controlled resin content and curing conditions.
Main specification range
View product page - Reinforcement
- Woven / UD / spread tow / custom
- Fabric type
- 3K twill / plain / UD / spread tow
- Fiber grade
- T300 / T700 / T800 / custom
04
Chopped & Milled Carbon Fiber
Short fiber and powder materials for plastic, resin and conductive applications.
- Key products
- Chopped carbon fiber, milled carbon fiber powder and carbon fiber powder
- Common applications
- Plastic compounding, resin reinforcement, conductive compounds and friction materials
Short Fiber Reinforcement
Chopped Carbon Fiber
Chopped carbon fiber in 3 mm, 6 mm, 12 mm and custom lengths for thermoplastics, concrete, resin compounds and specialty composites.
Main specification range
View product page - Cut length
- 3 / 6 / 12 / 25 mm; custom
- Tow source
- 3K / 6K / 12K / 24K / 50K options
- Sizing
- Epoxy, PA, PP, PEEK or custom compatibility
Short Fiber Additive
Milled Carbon Fiber Powder
Milled carbon fiber powder for conductive fillers, friction materials, coatings, thermoplastic compounds and functional composite modification.
Main specification range
View product page - Form
- Milled carbon fiber powder
- Mean length
- 30-300 µm typical
- Fiber diameter
- Approx. 7 µm typical carbon fiber
05
CFRP Profiles & Custom Parts
Carbon fiber tubes, sheets, rods, laminates and custom CNC components based on drawings or samples.
- Key products
- Carbon fiber tube, roll-wrapped tube, filament-wound tube, pultruded tube, sheet, plate, rod and CNC CFRP parts
- Common applications
- Civil UAV components, sports equipment, automation supports, fixtures and lightweight assemblies
Carbon Fiber Laminate Sheet
3K Carbon Fiber Laminate Sheet
3K twill carbon fiber plate and laminate sheet with matte or glossy surfaces, custom thicknesses and CNC cutting for panels, fixtures and drawing-controlled industrial parts.
Main specification range
View product page - Surface
- 3K twill carbon fiber
- Thickness
- Order-specific; confirm by drawing and quotation
- Finish
- Glossy / matte / peel-ply / sanded
Roll-Wrapped Tube

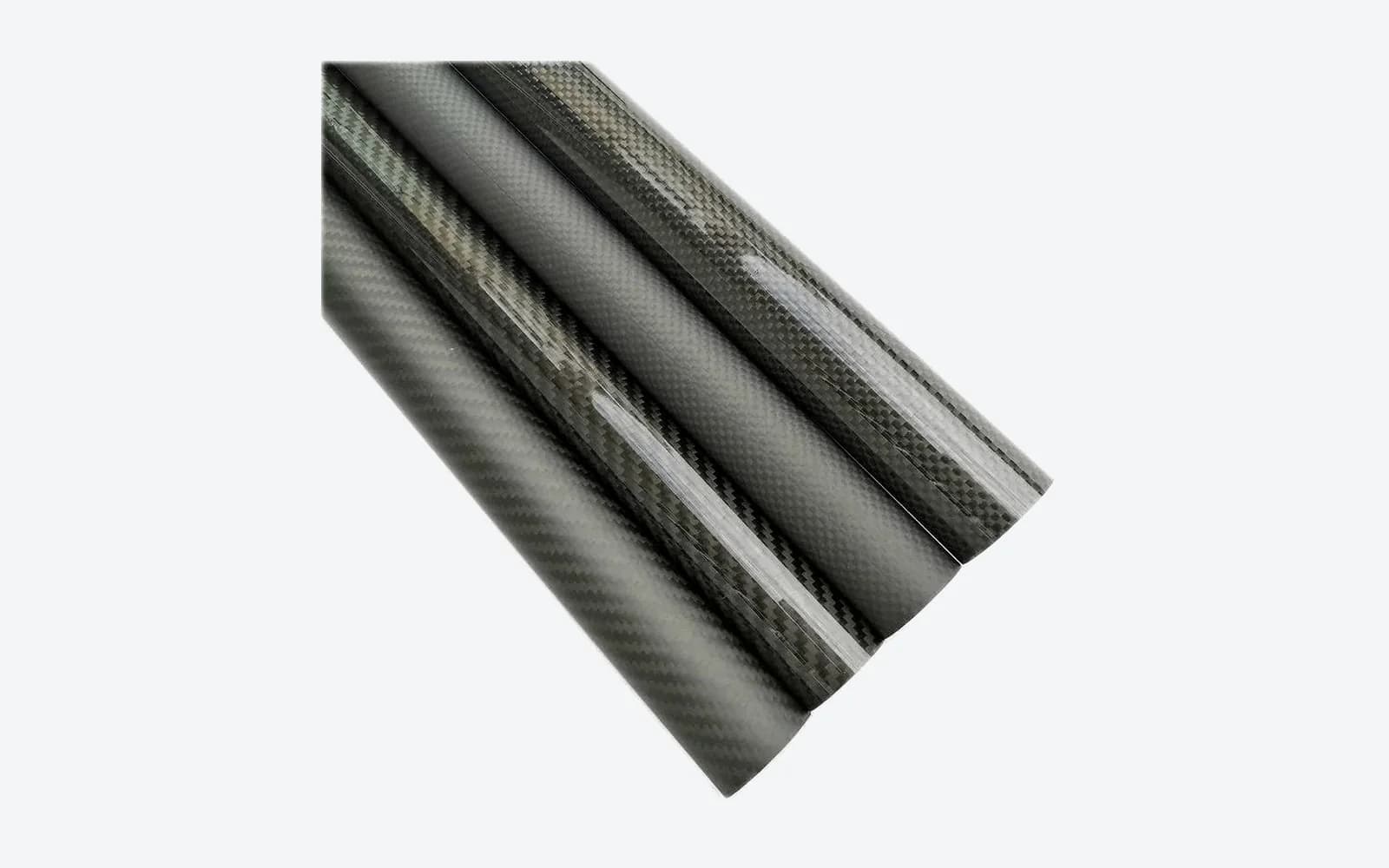

3K Surface Carbon Fiber Tube
3K twill surface carbon fiber tubes for visible lightweight structures, sporting goods, commercial drone components, inspection equipment, automation parts and custom composite assemblies.
Main specification range
View product page - Surface
- 3K twill / plain woven carbon
- OD
- 6-100 mm typical; custom
- Wall thickness
- 0.5-5.0 mm typical
Filament-Wound Composite Tube
Filament-Wound Carbon Fiber Tube
Filament-wound carbon fiber tubes made from continuous carbon tow with project-specific hoop, helical and axial reinforcement for torsion, hoop loading and lightweight structural applications.
Main specification range
View product page - Process
- Continuous-fiber filament winding
- Fiber architecture
- Hoop, helical and axial layers by design review
- Diameter / wall / length
- Custom by drawing and tooling review
Pultruded Profile
Pultruded Carbon Fiber Tube
Pultruded carbon fiber tubes and profiles with high axial stiffness, stable dimensions and efficient production for industrial, agricultural drone, inspection equipment and commercial applications.
Main specification range
View product page - Process
- Continuous pultrusion
- Shape
- Round, square, rectangular and custom profiles
- OD / size
- 3-80 mm typical; custom
Finished Composites
Custom Carbon Fiber Products
Custom carbon fiber parts, molded products, CNC plates, civil UAV frames, remote-controlled model parts, tubes, assemblies and composite components according to drawings or samples.
Main specification range
View product page - Product type
- Plates, tubes, molded parts, assemblies
- Process
- CNC machining, layup, molding, bonding
- Surface
- 3K twill, UD, painted, matte or glossy
06
Structural Strengthening System
UD fabric, pultruded CFRP plate and epoxy resin for concrete and building reinforcement.
- Key products
- UD carbon fabric for strengthening, pultruded CFRP plate, structural epoxy resin and system supply
- Common applications
- Concrete, steel, masonry, bridge and building reinforcement projects
Structural Reinforcement
Carbon Fiber Structural Strengthening System
System materials including UD carbon fiber fabric, pultruded CFRP plates and structural epoxy resin for concrete, bridge and building reinforcement projects.
Main specification range
View product page - UD fabric
- 200 g/m² supply reference; 300 g/m² product TDS
- CFRP plate
- 1.2 mm documented; width and length by quotation
- Epoxy resin
- Primer / saturant / plate adhesive by project
Directional Reinforcement
UD Carbon Fiber Fabric
Unidirectional carbon fiber reinforcement with most fibers aligned in one direction for directional strength, stiffness and controlled layup orientation.
Main specification range
View product page - Fiber direction
- 0 degree unidirectional
- Published references
- 200 g/m² strengthening supply reference; 300 g/m² product TDS
- Documented width
- 100-500 mm for the 300 g/m² product
07
Aramid and Hybrid Fabrics
Aramid, carbon aramid hybrid and jacquard fabrics for impact-resistant laminates, decorative surfaces and custom composite skins.
- Key products
- Aramid fabric, carbon aramid hybrid fabric, carbon glass hybrid fabric and jacquard carbon fabric
- Common applications
- Impact-resistant laminates, marine skins, sports goods and decorative CFRP surfaces
Impact Reinforcement
Aramid Fabric
Para-aramid woven fabric for impact resistance, abrasion resistance and lightweight protective composite laminates.
Main specification range
View product page - Fiber
- Para-aramid
- Areal weight
- 170-600 g/m² typical
- Weave
- Plain / twill / satin / hybrid
Decorative Reinforcement
Carbon Aramid Hybrid Jacquard Fabric
Carbon/aramid hybrid cloth, carbon/glass hybrid fabric and jacquard carbon patterns for visual composite parts and selected functional laminates.
Main specification range
View product page - Hybrid type
- Carbon/aramid, carbon/glass, jacquard carbon
- Areal weight
- 160-650 g/m² typical
- Weave
- Plain / twill / pattern / jacquard
08
Custom Carbon Fiber Products
Custom carbon fiber parts, CNC plates, civil UAV frames, remote-controlled model parts, molded components, tube assemblies and composite products based on drawings or samples.
- Key products
- CNC CFRP plates, custom tubes, molded components, carbon covers and assemblies
- Common applications
- Drawing-based OEM components for industrial, automotive, sports and commercial equipment
Finished Composites
Custom Carbon Fiber Products
Custom carbon fiber parts, molded products, CNC plates, civil UAV frames, remote-controlled model parts, tubes, assemblies and composite components according to drawings or samples.
Main specification range
View product page - Product type
- Plates, tubes, molded parts, assemblies
- Process
- CNC machining, layup, molding, bonding
- Surface
- 3K twill, UD, painted, matte or glossy
Request specifications or pricing
Tell us your material requirement.
Share the product, fiber grade, weave, width, areal weight, quantity and application. Our team will review the details and respond with a practical quotation or material suggestion.
Send Inquiry
