Product / 09
3K Carbon Fiber Laminate Sheet
3K twill surface carbon fiber laminate sheets in multiple thicknesses for CNC parts, FPV drone frames, RC model parts, panels, fixtures and decorative structural components.
Quick Answer
3K Carbon Fiber Laminate Sheet in one minute.
3K carbon fiber laminate sheets provide a recognizable twill carbon surface with controlled thickness and optional matte or glossy finish for machined composite parts.
- Product type
- Carbon Fiber Laminate Sheet
- Surface
- 3K twill carbon fiber
- Thickness
- 0.5–20 mm typical; thicker panels by project review
- Finish
- Glossy / matte / peel-ply / sanded
- Size
- 400x500, 500x600, 1000x1000 mm; custom
- Documents
- TDS / SDS / COA by product scope and order agreement
- End-use review
- Some high-performance carbon fiber materials, prepregs, yarns, tow, CFRP components and related products may require end-use and end-user review before quotation or shipment.
Specification table
Typical thickness range
Laminate sheet properties vary by layup. Thickness tolerance and flatness are confirmed by panel size and curing process.
| Grade | Typical thickness | Surface by order | Typical panel size | Finish by order | Indicative use |
|---|---|---|---|---|---|
| FRPH-LP3K-0.5 | 0.5 mm typical | 3K twill by order | 400x500 mm typical or custom | Gloss/matte by order | Decorative skins |
| FRPH-LP3K-1.0 | 1.0 mm typical | 3K twill by order | 500x600 mm typical or custom | Gloss/matte by order | Covers and panels |
| FRPH-LP3K-2.0 | 2.0 mm typical | 3K twill by order | 500x600 / 1000x1000 mm typical | Gloss/matte by order | FPV drone frames and CNC parts |
| FRPH-LP3K-3.0 | 3.0 mm typical | 3K twill by order | 500x600 / 1000x1000 mm typical | Gloss/matte by order | RC model and fixture plates |
| FRPH-LP3K-5.0 | 5.0 mm typical | 3K twill by order | Custom by order | Gloss/matte by order | High stiffness components |
| Custom plate | 6–20 mm typical; thicker panels by project review | 3K / UD / mixed by order | Custom by order | By order | Tooling and industrial parts |
Product overview
How 3K Laminate Sheet is used.
The overview explains typical buyer context without replacing customer testing, engineering validation or official batch documents.

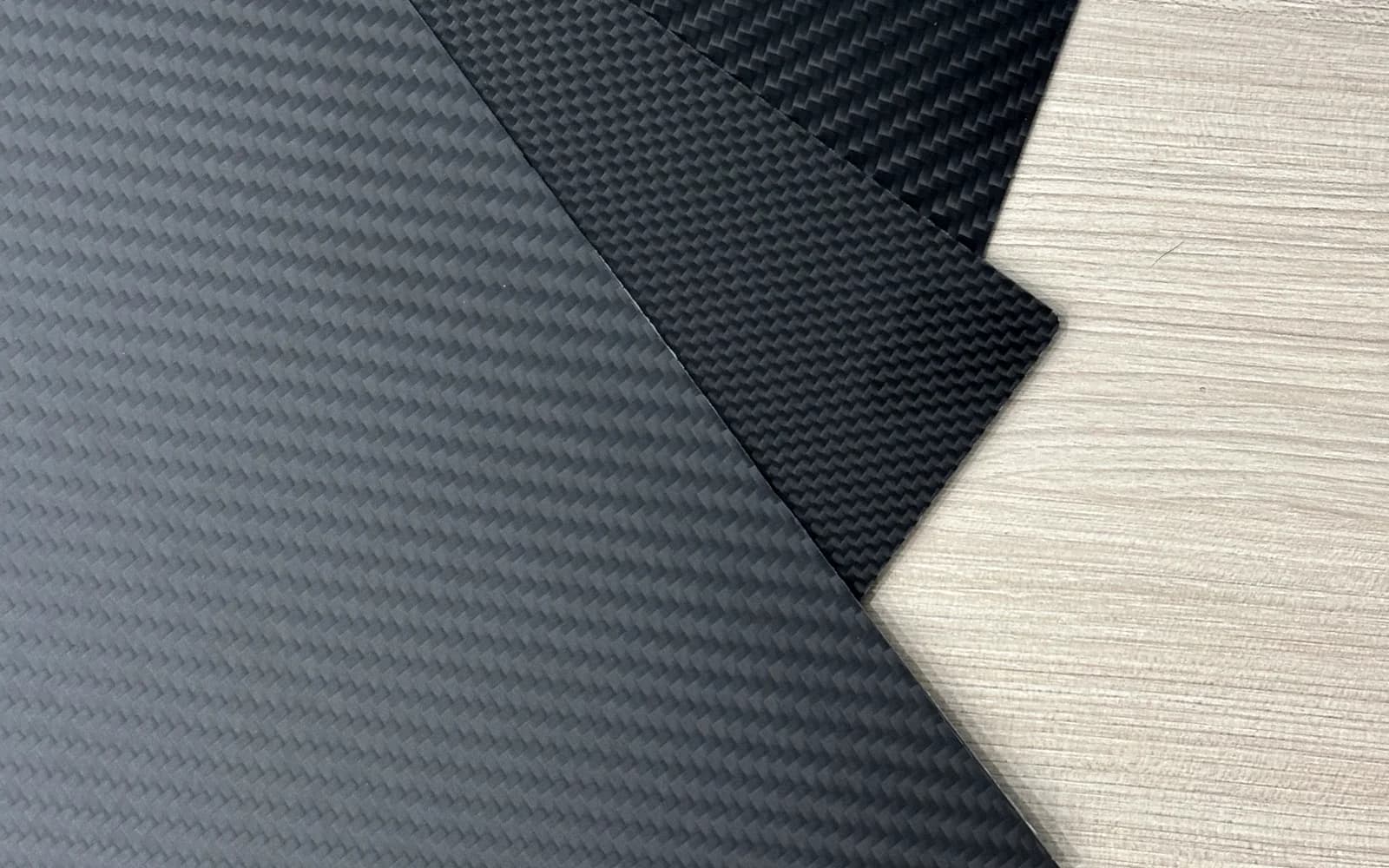

3K Carbon Fiber Laminate Sheet is a cured carbon composite sheet with a 3K woven surface. It is widely used when buyers need a carbon appearance together with stable panel thickness.
The inner layup can be woven, UD or mixed depending on required stiffness, cost and machining behavior. Thicker sheets can be supplied for CNC-machined parts, civil UAV frames, FPV drone frames, RC model parts, tooling and fixtures, and industrial panels.
FRP HOME can reserve the surface finish, thickness, panel size, tolerance, inner layup and packing method according to the customer's part requirement.
Available specifications
Common options for RFQ preparation.
Standard surface3K twill carbon fiber
Thickness0.5 / 1 / 1.5 / 2 / 3 / 4 / 5 / 6 / 8 / 10 mm and custom
ProcessingCNC cutting, drilling and edge finishing by request
FinishGlossy or matte clear surface
Typical TDS items
| Item | Typical value | Remark |
|---|---|---|
| Density | Approx. 1.45–1.65 g/cm³ typical | Depends on layup and resin |
| Fiber layup | 3K surface with woven/UD inner plies typical or by order | Custom layup available |
| Thickness tolerance | ±0.1 mm typical for thin panels | Varies by thickness |
| Surface | Glossy or matte clear resin by order | Protective film optional |
| Packing | Flat panel protection, carton or wooden case by order | Export packing available |
Applications
Where this product is commonly specified.
Material suitability should be verified through the customer's process, design requirements and application testing.
Civil UAV and FPV drone frames
RC model parts and CNC machined plates
Automotive interior trim and covers
Fishing rod and leisure product components
Industrial fixtures and lightweight panels
Sports equipment components
Carbon fiber appearance parts
How to choose this product
Selection guidance before sampling.
Confirm whether the part is visual, structural, machined, molded, roll-wrapped or pultruded.
Attach CAD, DXF, STEP or reference photos when geometry affects quotation.
RFQ information required
Details requested for CFRP Profiles & Custom Parts.
Brand availability depends on stock, batch, order quantity, destination country and compliance review.
Product type
Dimensions
Tolerance
Surface finish
Manufacturing process
Application / End Use
Quantity
Destination Country
Required Documents
Documents available
TDS / SDS / COA
Document availability depends on material family, specification, order agreement and batch. Final values are confirmed by official documents, not by website examples.
Material specifications, typical properties and recommended use.
Hazard information, handling guidance and safety measures where applicable.
Batch information and material characteristics when available for confirmed orders.
Packaging and shipping
Confirm packing before shipment.
Packing method depends on roll size, component geometry, quantity and destination. Roll protection, cartons, pallets, labels and packing photos can be discussed before shipment.
FAQ
Common buyer questions.
Is the 3K carbon plate fully 3K woven inside?
It can be made with woven layers or a mixed layup. For many industrial parts, a 3K surface with optimized inner reinforcement is more practical.
Can the plate be CNC machined?
Yes. CNC cutting and drilling can be discussed, but tool wear, dust control and edge quality should be considered.
Can 3K carbon fiber laminate sheet be used for civil UAV or FPV drone frames?
Yes. Many customers use carbon fiber laminate sheets for civil UAV frames, FPV drone frames, RC model parts and inspection equipment panels. Thickness, layup and machining tolerance should be confirmed by the drawing and load requirement.
