Product / 06
Aramid Fabric
Para-aramid woven fabric for impact resistance, abrasion resistance and lightweight protective composite laminates.
Quick Answer
Aramid Fabric in one minute.
Aramid fabric is supplied in plain, twill and selected hybrid constructions for protective structures, marine products, sports equipment and industrial composite parts.
- Product type
- Impact Reinforcement
- Fiber
- Para-aramid
- Areal weight
- 170-600 g/m² typical
- Weave
- Plain / twill / satin / hybrid
- Width
- 1000 / 1270 / 1500 mm; custom
- Documents
- TDS / SDS / COA by product scope and order agreement
- End-use review
- Some high-performance carbon fiber materials, prepregs, yarns, tow, CFRP components and related products may require end-use and end-user review before quotation or shipment.
Specification table
Typical aramid fabric range
Aramid fabric data is indicative. Cutting method, resin wet-out and edge handling should be confirmed through customer trials.
| Grade | Typical areal weight | Weave by order | Typical width | Typical roll length | Indicative use |
|---|---|---|---|---|---|
| FRPH-AF170P | 170 g/m² typical | Plain | 1000 / 1270 mm typical | 100 m typical | Lightweight skins |
| FRPH-AF200T | 200 g/m² typical | Twill | 1000 / 1270 mm typical | 100 m typical | Flexible laminates |
| FRPH-AF280P | 280 g/m² typical | Plain | 1000 / 1270 mm typical | 100 m typical | General reinforcement |
| FRPH-AF400T | 400 g/m² typical | Twill | 1000 / 1270 mm typical | 50 / 100 m typical | Impact laminates |
| FRPH-AF600 | 600 g/m² typical | Plain / twill | 1000 mm typical | 50 m typical | Heavy reinforcement |
Product overview
How Aramid Cloth is used.
The overview explains typical buyer context without replacing customer testing, engineering validation or official batch documents.
Aramid Fabric is selected for composite laminates that require impact resistance, abrasion resistance and low weight. It is commonly used with epoxy, vinyl ester and other compatible resin systems.
Compared with carbon fiber, aramid has lower compressive stiffness but better toughness and energy absorption. It is often combined with carbon fiber to balance stiffness and impact performance.
FRP HOME supplies standard aramid cloth and carbon/aramid hybrid options for distributors and composite product manufacturers.
Available specifications
Common options for RFQ preparation.
MaterialPara-aramid woven reinforcement
Key benefitImpact and abrasion resistance
ColorNatural yellow; hybrid colors by design
ProcessWet layup, vacuum bagging, infusion
Technical notes
| Item | Typical value | Remark |
|---|---|---|
| Fiber type | Para-aramid by order | Brand by order |
| Compatibility | Epoxy / vinyl ester / selected thermosets, indicative only | Trial recommended |
| Cutting | Sharp shears or CNC cutting recommended | Aramid is difficult to cut |
| Storage | Dry, clean, protected from UV | Keep wrapped before use |
| Packing | Roll on tube, PE film, carton by order | Export label available |
Applications
Where this product is commonly specified.
Material suitability should be verified through the customer's process, design requirements and application testing.
Impact-resistant sports and marine panels
Marine kayaks, canoes and impact skins
Sporting goods and helmets
Industrial abrasion-resistant laminates

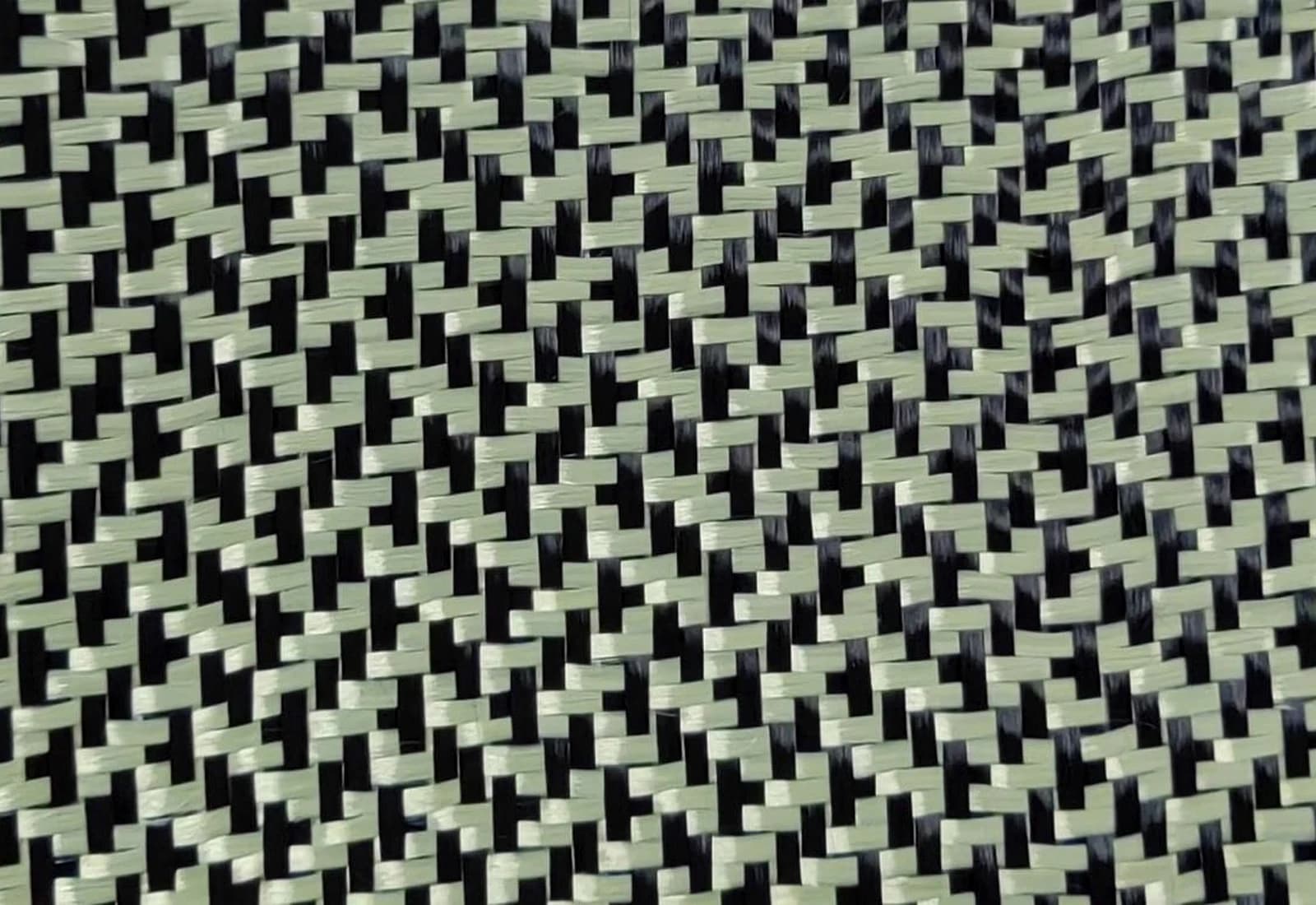

Carbon/aramid hybrid structures
How to choose this product
Selection guidance before sampling.
Use woven fabric for balanced handling and appearance; use UD when directional reinforcement is required.
Keep spread tow under woven carbon fiber fabric, with a separate spread tow product discussion when needed.
RFQ information required
Details requested for Woven Carbon Fiber Fabric.
Brand availability depends on stock, batch, order quantity, destination country and compliance review.
Tow size
Weave type
Pattern size
Areal weight
Width
Roll length
Application / End Use
Quantity
Destination Country
Required Documents
Documents available
TDS / SDS / COA
Document availability depends on material family, specification, order agreement and batch. Final values are confirmed by official documents, not by website examples.
Material specifications, typical properties and recommended use.
Hazard information, handling guidance and safety measures where applicable.
Batch information and material characteristics when available for confirmed orders.
Packaging and shipping
Confirm packing before shipment.
Packing method depends on roll size, component geometry, quantity and destination. Roll protection, cartons, pallets, labels and packing photos can be discussed before shipment.
FAQ
Common buyer questions.
Why use aramid fabric with carbon fiber?
Carbon fiber provides stiffness, while aramid can improve impact and abrasion behavior. Hybrid layups are common where both properties matter.
Can aramid fabric be supplied in custom colors?
Pure para-aramid is normally yellow. Colored effects are usually achieved with hybrid yarns or decorative fabric design.
Related products
Compare adjacent material options.
CTA / RFQ form
Send us the specification for Aramid Cloth.
Include the selected product type, end use, destination country, required documents and any drawings or previous specifications.
