Product / 07

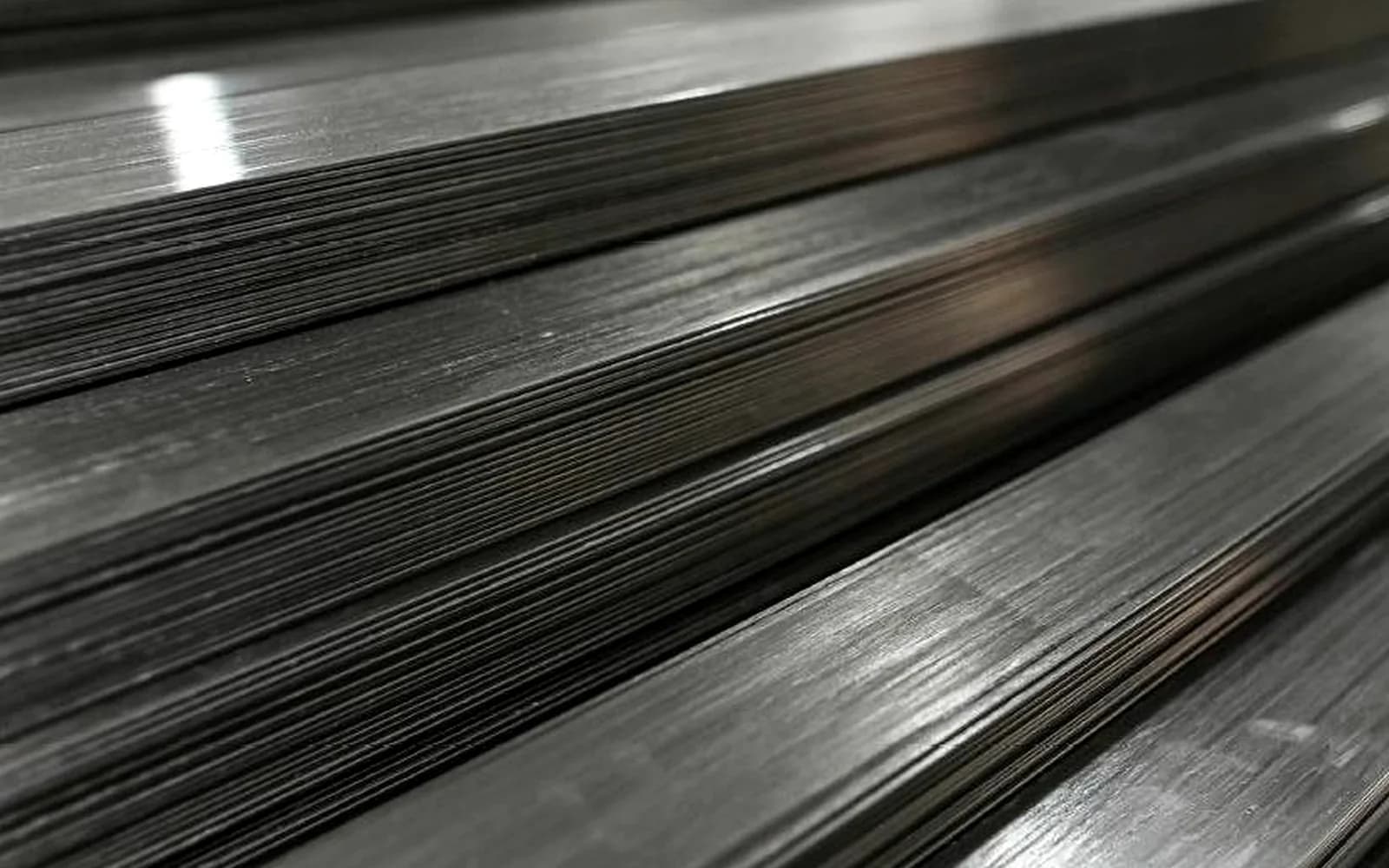

Pultruded Carbon Fiber Plate for Structural Reinforcement
Pultruded CFRP plates for externally bonded structural strengthening, available in 1.2, 1.4, 2.0, 3.0 and 5.0 mm thickness options.
Quick Answer
Pultruded Carbon Fiber Plate for Structural Reinforcement in one minute.
Structural reinforcement carbon fiber pultruded plates are supplied for concrete, masonry and timber strengthening systems, with standard thickness and width options for project-based orders.
- Product type
- Structural Reinforcement
- Thickness
- 1.2 / 1.4 / 2.0 / 3.0 / 5.0 mm
- Width
- 50 / 80 / 100 / 120 / 150 mm; custom
- Fiber direction
- Pultruded UD carbon fiber
- Surface
- Sanded or peel-ply bonding surface
- Documents
- TDS / SDS / COA by product scope and order agreement
- End-use review
- Some high-performance carbon fiber materials, prepregs, yarns, tow, CFRP components and related products may require end-use and end-user review before quotation or shipment.
Specification table
Structural reinforcement plate range
Indicative CFRP plate data. Structural design values and adhesive systems must be approved by qualified engineers.
| Grade | Typical thickness | Typical width options | Indicative length | Surface by order | Indicative use |
|---|---|---|---|---|---|
| FRPH-CP1.2 | 1.2 mm typical | 50 / 80 / 100 / 120 mm typical | 50-250 m roll typical or by order | Bonding surface by order | General CFRP strengthening |
| FRPH-CP1.4 | 1.4 mm typical | 50 / 80 / 100 / 120 / 150 mm typical | 50-250 m roll typical or by order | Bonding surface by order | Common construction plate |
| FRPH-CP2.0 | 2.0 mm typical | 50 / 80 / 100 / 120 mm typical | Straight or roll by review | Bonding surface by order | Higher area stiffness |
| FRPH-CP3.0 | 3.0 mm typical | 50 / 80 / 100 mm typical | Straight length by review | Bonding surface by order | Heavy reinforcement |
| FRPH-CP5.0 | 5.0 mm typical | Custom width by review | Straight length by review | Bonding surface by order | Special structural projects |
Product overview
How CFRP Strengthening Plate is used.
The overview explains typical buyer context without replacing customer testing, engineering validation or official batch documents.
Pultruded Carbon Fiber Plate for Structural Reinforcement is designed for externally bonded reinforcement of concrete, masonry, timber and steel structures when used with a compatible structural epoxy system.
The pultrusion process aligns carbon fibers in the length direction, producing high axial tensile stiffness and consistent thickness for strengthening plates.
FRP HOME supplies standard 1.2 mm, 1.4 mm, 2.0 mm, 3.0 mm and 5.0 mm thickness options. Engineering design, substrate evaluation and adhesive selection remain the responsibility of the project engineer.
Available specifications
Common options for RFQ preparation.
Standard thickness1.2 / 1.4 / 2.0 / 3.0 / 5.0 mm
Standard width50-150 mm typical
LengthRoll or straight length by project
System useExternally bonded reinforcement with epoxy adhesive
Typical technical range
| Property | Typical range | Remark |
|---|---|---|
| Fiber volume content | High fiber content, typically above 60% | By production specification |
| Tensile strength | 2400-3100 MPa typical commercial range | Design value by project engineer |
| Tensile modulus | 160-170 GPa typical standard modulus plate | Higher modulus by request |
| Density | Approx. 1.55–1.65 g/cm³ typical | Depends on resin/fiber content |
| Compatible adhesive | Structural epoxy bonding system by project | Customer system approval required |
Applications
Where this product is commonly specified.
Material suitability should be verified through the customer's process, design requirements and application testing.
Concrete beam and slab strengthening
Bridge and infrastructure reinforcement
Masonry and timber strengthening
Structural repair and load upgrade
Civil engineering distributors and contractors
How to choose this product
Selection guidance before sampling.
Confirm whether structural epoxy resin, primer, saturant or plate adhesive is required.
Project suitability should be reviewed by the customer's qualified engineering team.
RFQ information required
Details requested for Structural Strengthening System.
Brand availability depends on stock, batch, order quantity, destination country and compliance review.
Project type
Material required
UD fabric weight
CFRP plate width and thickness
Epoxy resin requirement
Project area
Application / End Use
Quantity
Destination Country
Required Documents
Documents available
TDS / SDS / COA
Document availability depends on material family, specification, order agreement and batch. Final values are confirmed by official documents, not by website examples.
Material specifications, typical properties and recommended use.
Hazard information, handling guidance and safety measures where applicable.
Batch information and material characteristics when available for confirmed orders.
Packaging and shipping
Confirm packing before shipment.
Packing method depends on roll size, component geometry, quantity and destination. Roll protection, cartons, pallets, labels and packing photos can be discussed before shipment.
FAQ
Common buyer questions.
Which thickness is common for CFRP construction strengthening?
1.2 mm and 1.4 mm plates are common for many externally bonded strengthening systems, while thicker plates are selected for special stiffness or capacity requirements.
Can FRP HOME provide design responsibility?
FRP HOME supplies material data and commercial support. Structural design, substrate checks and final system approval should be handled by qualified engineers.
